1325 Laser Cutting Machine For Wood Acrylic Plastic Fabric

Open style working platform is convenient to put materials for coordinating with assembly line which meet demands of the large area and quantity working. For Wood Acrylic Plastic Fabric

  • 1325
  • MC
power:
Quantity:

Product Description

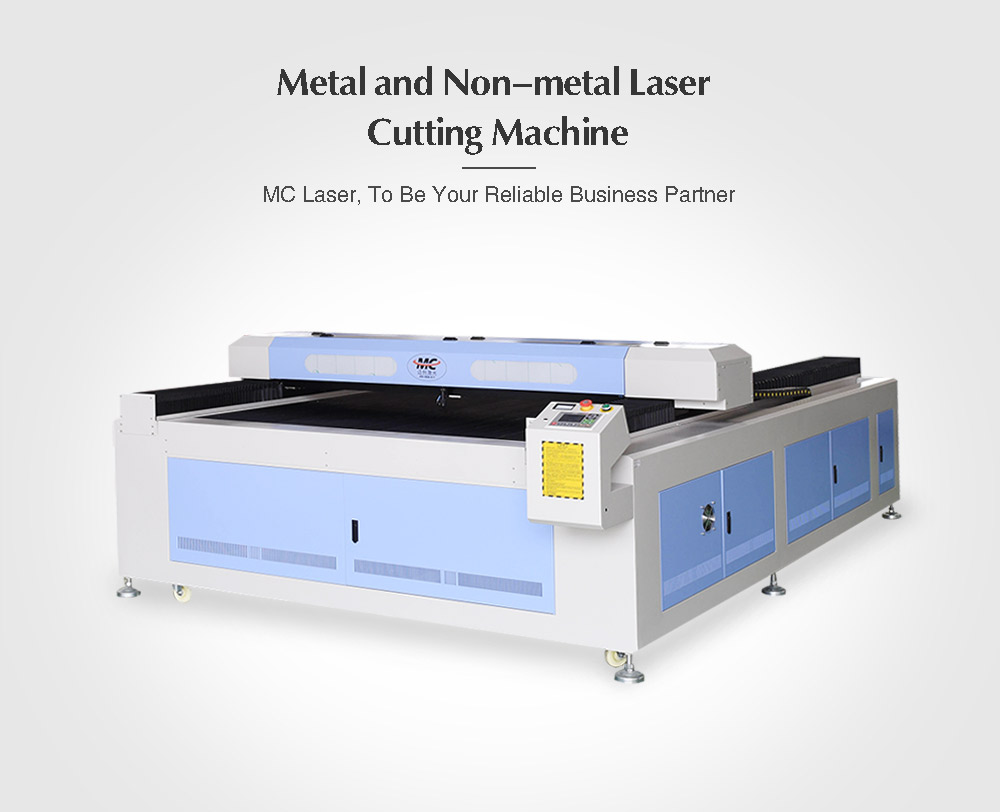

1325 laser cutting machine

Accessories of 1325 laser cutting machine for wood acrylic plastic fabric:

Smart control panel-RD brand,can display work process clearly.

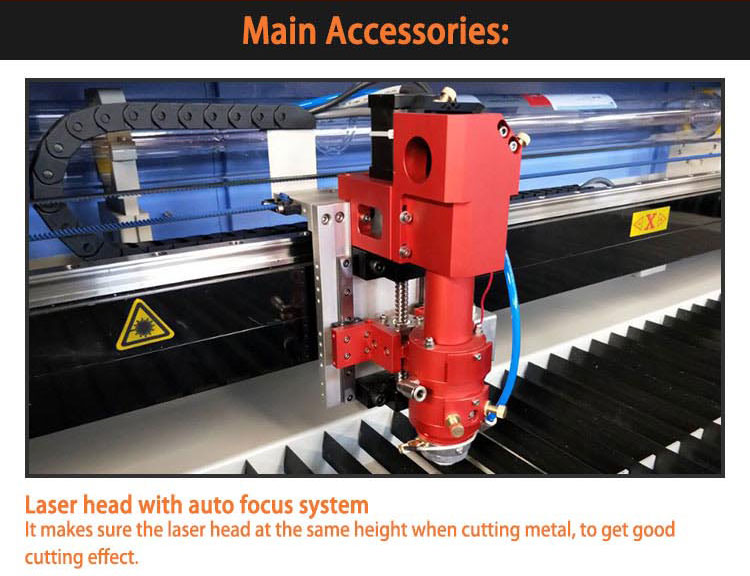

Laser head with red-light pointer, to find the position of laser beam.

Lead Shine brand 3 phase Step motor, with powerful and high precision.

Taiwan imported Liner guide rail and high speed & wear-resisting belt.

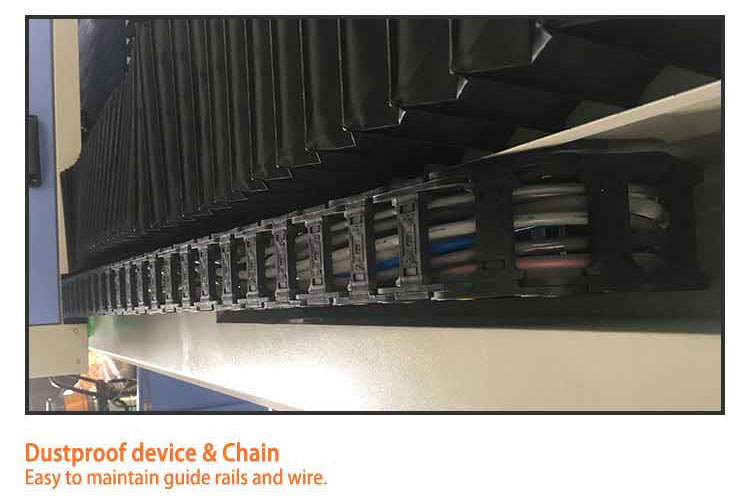

Dustproof device & Chain,easy to maintain guide rails and wire.



Optional parts of 1325 laser cutting machine for wood acrylic plastic fabric:

Auto focus device, can intelligent adjust the focus distance between the head and materials.

Motorized lifting table, intelligently adjust up and down in accordance with different thickness of material, make sure the best focus height and perfect processing effect.

Rotary device, used for round or cylindrical objects, such as: wine / glass bottle, mugs.

Wifi receiver, can operate directly by own phone, more convenient.

Model

MC1325

Working size

1300mm*2500mm

Laser tube

RECI 150W laser tube

Laser type

Sealed CO2 laser tube

Driving system

step motor

Transmission

Helical rack and HIWIN guild

Work platform

Blade platform or honeycomb

Controlling software

Off-computer controlling system

Compatible software

Coreldraw AutoCAD Photoshop

Cooling mode

Water cooling

Auxiliary equipment

Exhaust-fan, air compressor,CW5200 Chiller.

Minimum shaping character

English 1*1mm

Cutting speed

0-400mm/s due to different material

Engraving speed

0-600mm/s

Position accuracy

±0.01mm

Operating temperature

0-45 degree

Working voltage

AC110-220V ±10%/10A,50-60HZ

Power

5.5KW/H


Details


laser head

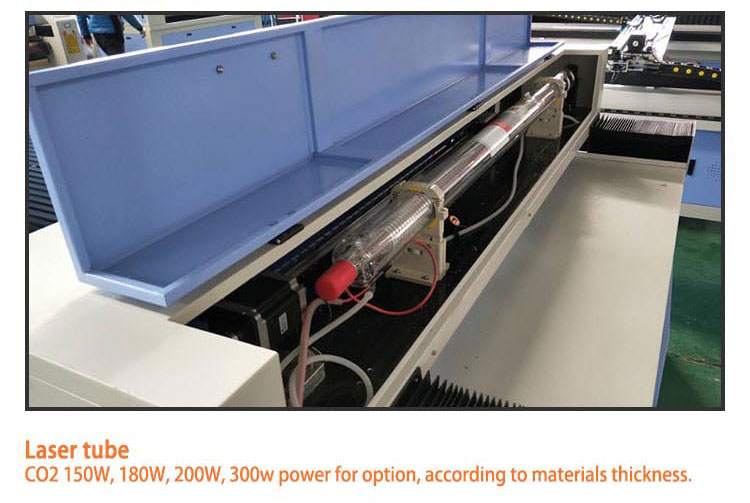

laser tube

laser cutter

laser tube machine

Sample

1325 laser cutting machinesamples
