MC 1630 Laser Cutting Machine for Fabric

Most professional single layer fabric cutting equipment, is suitable for different kinds of textile, it can do accurate cutting on different kinds of textile, fabrics in random figure, such as: suit fabric, shirts, cotton cloth, polyester fabric, yarn-dyed fabric, linen, Sewing embroidering cloth, leather, PU, etc.

  • 1630
  • MC
power:
Working Size:
Quantity:

Product Description

Special points:

1-Can instead of labor cutter

Can cut all the materials which labor cutter can do.

2-Better than labor cutter

Higher working efficiency- three times higher than one professional labor cutter.

Save materials:equip with auto composing software, can let materials use ratio reach the highest, greatly saving materials.

Save cost: full cost (electric,lens loss,tube loss) only need 8 dollar/day, is the 1/10 labor cost.

Long time working-can keep working for more longer time, no need stop to rest.

laser leather cutting machine

Specifications

Model

MC1630

Working size

1600mm*3000mm

Laser tube

150W RECI laser tube

Laser type

Sealed CO2 laser tube

Control system

Qiancheng Control system

Driving system

Leadshine Servo motor

Transmission

High precision FULO belt system

Work platform

Net worktable

Controlling software

Off-computer controlling system

Compatible software

Coreldraw AutoCAD Photoshop

Cooling mode

Water cooling

Auxiliary equipment

Exhaust-fan, air pump,CW5200Chiller.

Minimum shaping character

English 1*1mm

Cutting speed

0-40000mm/min due to different material

Engraving speed

0-64000mm/min

Position accuracy

±0.03mm

Operating temperature

0-45 degree

Working voltage

AC110-220V ±10%/10A,50-60HZ

Power

3500W

Packing

Standard wooden board

Weight

1200KGS

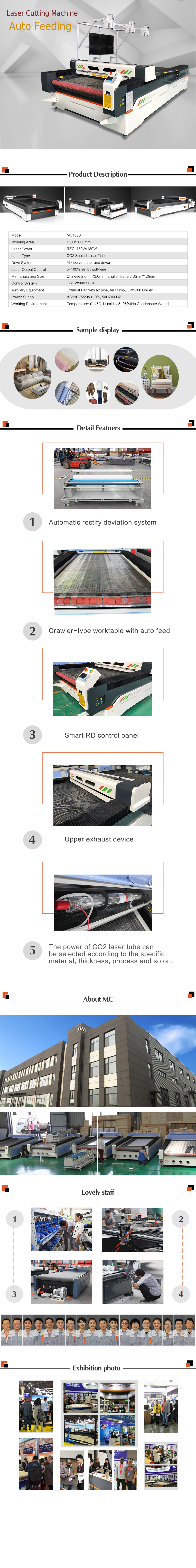

Details

整图

Samples

sample
