Home » Products » Co2 Laser Cutting Machine » MC 1390 Laser Cutting Machine for Acrylic, Crytal, Leather, MDF, Paper, Plastic, Plywood
Share to:

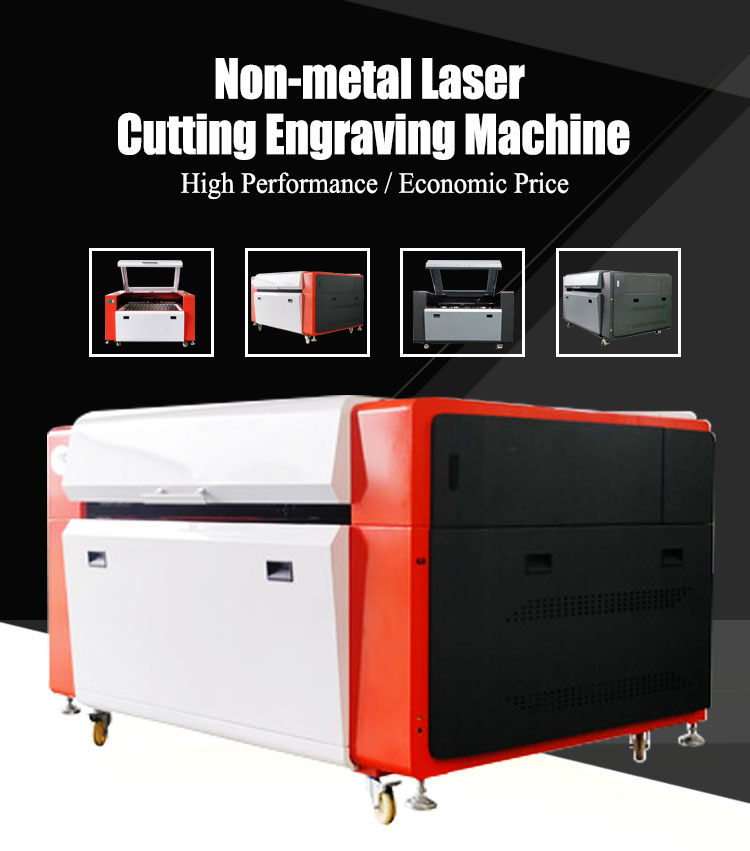

MC 1390 Laser Cutting Machine for Acrylic, Crytal, Leather, MDF, Paper, Plastic, Plywood

New design, High quality with competitive price. Widely used for Model industry(construction models, aviation and navigation models and wooden toys), advertising, decoration, arts and crafts, electronics, and electric appliances, etc.

  • 1390
  • MC
power:
Quantity:

Product Description

Applications:

1). Stone Industry(engrave): marble, granite, white marble etc.

2). Art crafts Industry: wood, bamboo, elephant's tusk, bone, leather, sea shell etc.

3). Advertisement Industry: double color board, acrylic engraving and cutting, label engraving, crystal, etc.

4). Model Industry: sand table construction model, plane model, etc.

5). Packing Industry: rubber engraving, doubling plate, die board cutting etc.

6). Leather and cloth processing Industry: compound leather, man-made leather, fabric, furtoy, etc.

7). Other industry: glass, crystal engraving, paper/greeting card cutting, etc.

laser cutting machine

Specifications

Working size

1300mm*900mm

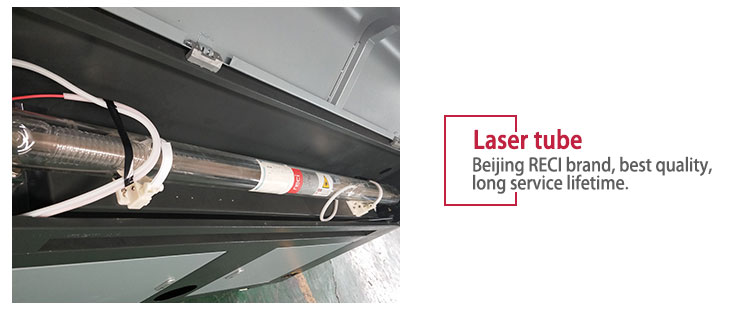

Laser tube

90W/100W/150W RECI laser tube

Laser type

Sealed CO2 laser tube

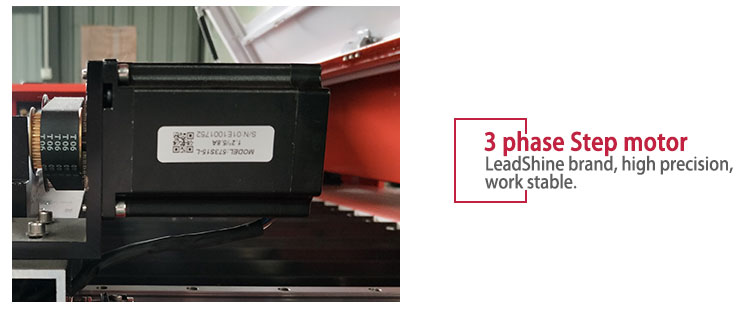

Driving system

JMK 3 phase step motor

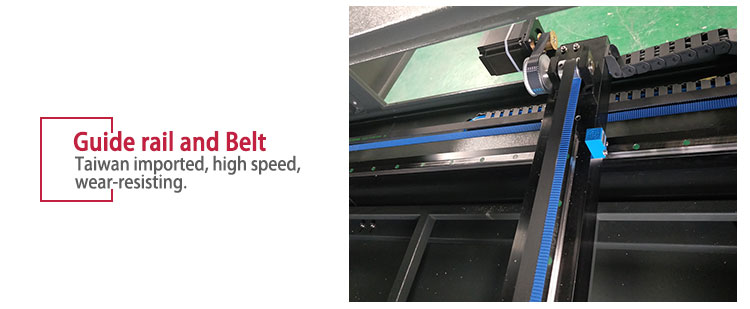

Transmission

High precision FULO belt system

Work platform

Blade platform or honeycomb

Controlling software

Off-computer controlling system

Compatible software

Coreldraw AutoCAD Photoshop

Cooling mode

Water cooling

Auxiliary equipment

Exhaust-fan, air pump,water pump.

Minimum shaping character

English 1*1mm

Cutting speed

0-40000mm/min due to different material

Engraving speed

0-64000mm/min

Position accuracy

±0.03mm

Operating temperature

0-45 degree

Working voltage

AC110-220V ±10%/10A,50-60HZ

Power

2500W

Packing

Standard wooden board

Weight

450KGS


Details

1390 Laser cutting machine

1390 Laser cutting machine

1390 Laser cutting machine

1390 Laser cutting machine

1390 Laser cutting machine

6


Samples

samples
