Hot Sale Precision Cnc Fabric Ccd Scanning Laser Cutting Machine

Large area digital printing, embroidering, car seat cushion, cloth toy, umbrella, wedding dress, model, handicraft, advertisement decoration, packing and printing, garment, leather, electronics, paper product, etc.

  • 1610
  • MC
Working Size:
Quantity:

Product Description

Large area digital printing, embroidering, car seat cushion, cloth toy, umbrella, wedding dress, model, handicraft, advertisement decoration, packing and printing, garment, leather, electronics, paper product, etc.


Main Parts of Large Scanning Size CCD Camera Conyor Table Auto Feeding Cloth Fabric Laser Cutting Machine:

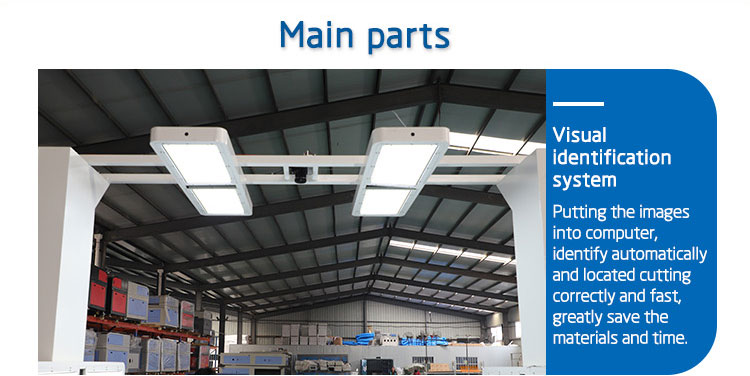

1. Visual identification system

2. Crawler-type worktable with auto feeding system

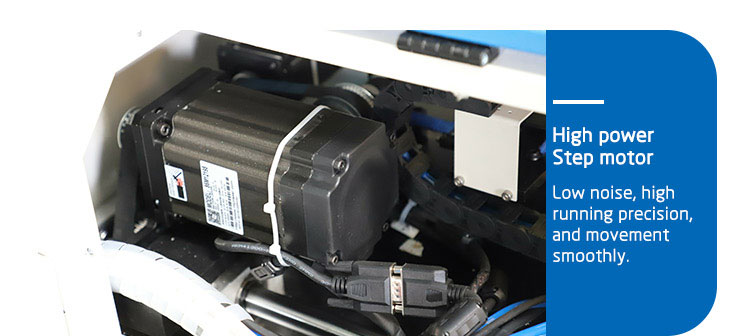

3. High power Step motor

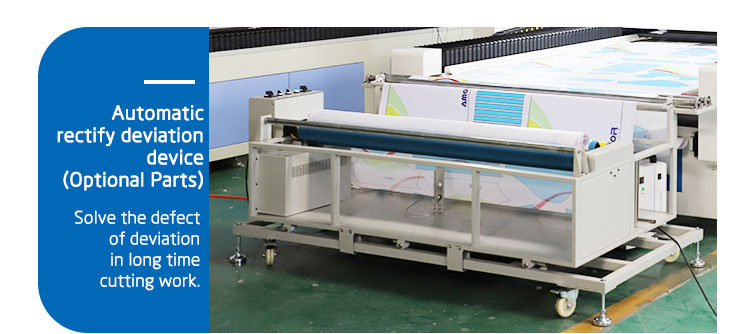

4. Automatic rectify deviation device(Optional Parts)

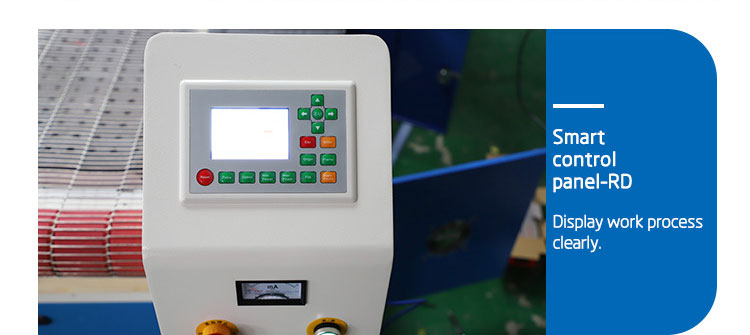

5. Smart control panel-RD

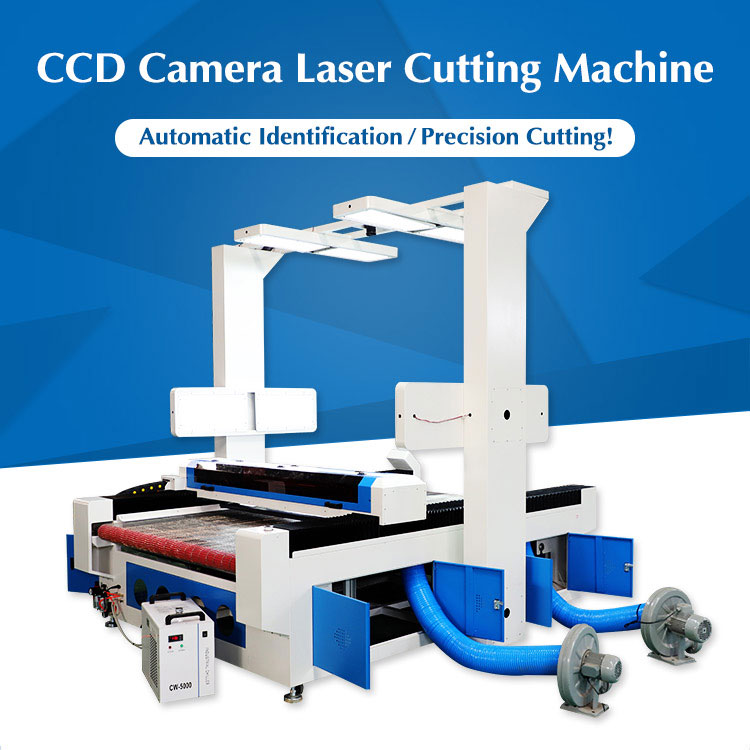

1630 laser cutter with CCD

Specifications

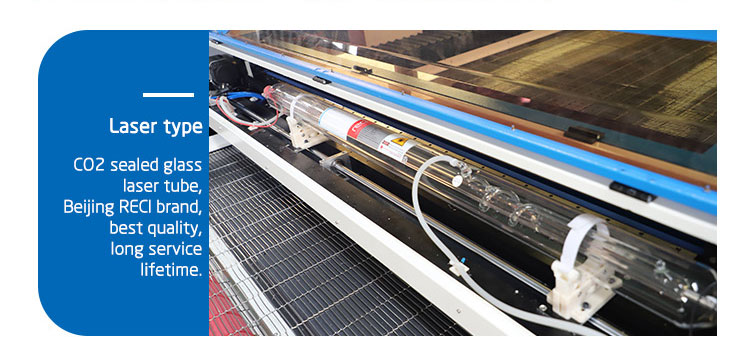

Laser typeSealed CO2 laser
Cutting Speed0-36m/min
Engraving speed0-64m/min
Laser Capacity130w/150w
Resolution Rate0.0064mm
Working tableBlade type
Positioning wayProjection positioning
Power supplyAC220,10%,50HZ
Positional Accuracy0.01mm
Repeated Positional accuracy0.01mm
Total Power<2500W
Working Temperature0C-45C
Working Humidity5-95% ( No Condensation)
Type of belt driveX-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y-direction outward sliding or inward sliding guide rail+3m synchronous belt
Air exhaustBig capacity down air exhaust/ side exhaust
Optical system25mm Molybdenum reflector; 25mm Silicon reflector; 20mm, focal length50.8 focusing mirror
Graphic Format SupportedPLT,AI,DXF,BMP,GIF,JPGE,PCX,TGA,TIFF,CDR,DMG,DXF etc.


Details

1

2

3

4

5

6

Samples

samples

APPLIACTIONS

content is empty!
