MC 3015 Fiber Laser Cutting Machine for Metal

High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
Stable Running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

  • 3015
  • MC
power:
Quantity:

Product Description

1. Application:


(1). Applicable Fields

Applicable for high-speed cutting on various metal plates or tubes such as S/S, carbon steel, galvanized sheet,

electrolytic plate, aluminum plate, steel, brass, alloy plate, rare metals and other materials laser cutting machine;

(2). Widely used

Widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical

equipment, lighting, posters, auto parts, display equipment, hardware and metal processing.


2. Main Features:

(1). Excellent Path Quality: Smaller laser dot and high work efficiency, high quality.

(2). High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.

(3). Stable Running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

(4). High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.

(5). Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.

(6). Low Maintenance: fiber line transmission no need reflect lens, save maintenance cost;

(7). Easy Operations: fiber line transmission, no adjustment of optical path.

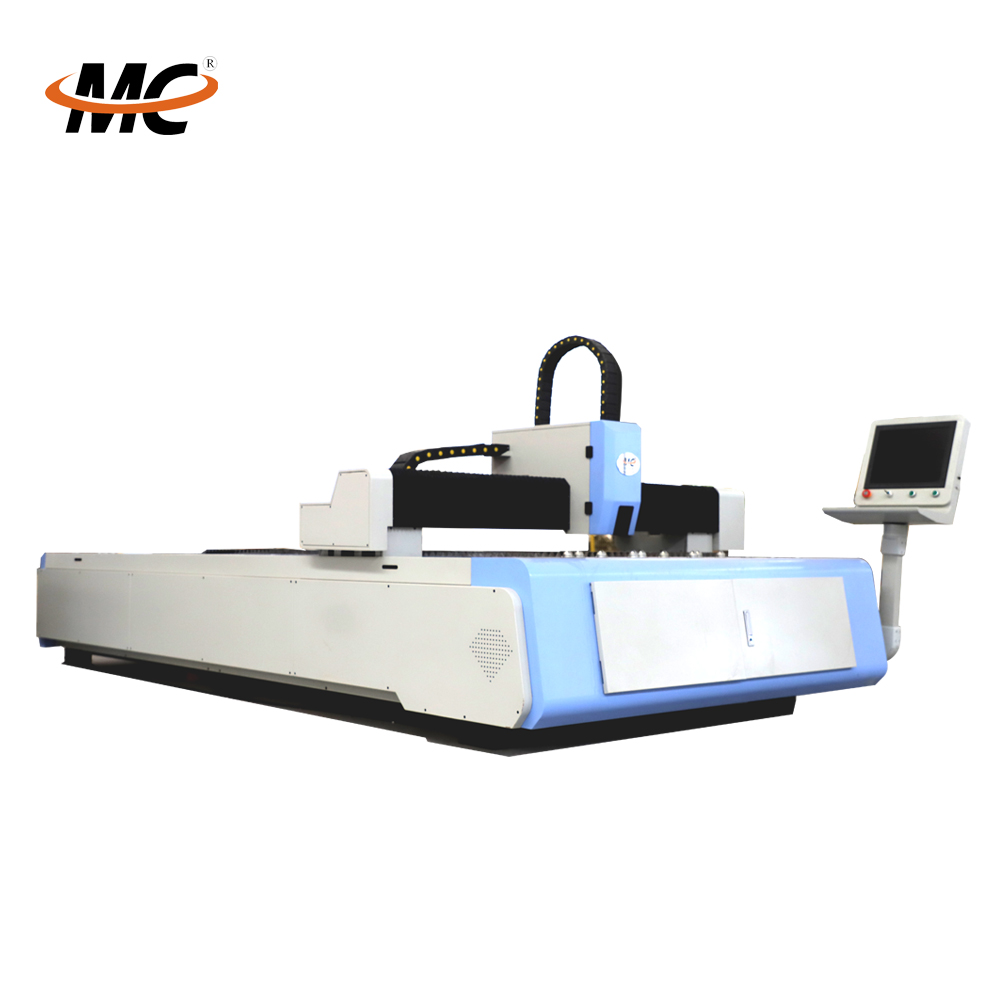

fiber cutter


Specifications

Working area1500*3000mm
Fiber laser sourceMAX brand, IPG and Raycus can be optional
Laser power500w, 300w, 750w, 1000w, 1500w, 2000w, 3000w can be optional
Maximum idle running speed1200mm/s
Position Accuracy±0.05mm/min
Minimum line width± 0.02mm
Control System
Cypcut
Working Voltage380V/50Hz
Transmit systemDual rack & Pinion type
Focus lensLasermech made in USA
Chain systemIgus made in Germany
Auxiliary GasOxygen,Nitrogen,Air


Details

3015 500w fiber laser cutting machine adopts imported rail and heavy racks from Taiwan, Japanese Panasonic servo motor and driver and American laser mech laser head. All this parts match well with each other, machine’s stability is great. Our this fiber machine not only can cut stainless steel, carbon steel, also can cut some high reflected materials, such as the aluminum and copper. Meet some customers'needs.

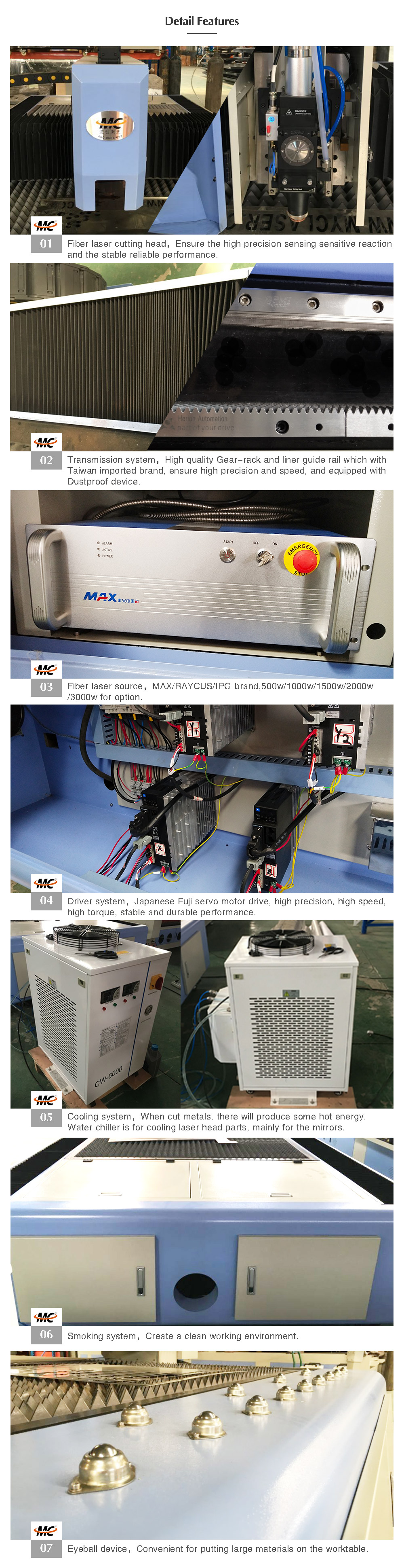

fiber laser parts

Samples

fiber cutting samples
