1325
MC
| Quantity: | |
|---|---|
Product Description
1) Driving system:Adopt frequency conversion speed regulation system, could adjust the turning speed at any time to solve the problem of materials' vibration.
2) Spindle:we could configure single spindle or two spindles, single spindle could configure chuck, two spindle could process two pieces at the same time for high efficiency.
3) Performance part: high accuracy stepper motor, after program calculating, guarantee the exact processing size.
4) Feeding part:Taiwan TBL high quality straight line sliding rails and Germany NEFF precise ball screw, control the linear error effectively.
5) Japanese frequency converter with high stability
6) Operation system developed by ourself with patent is easy to operate.
Specifications
Spindle | Italy HSD 9KW spindle |
Machine`s structure | Heavy cast steel body and gantry |
Drive Type | Delta servo motor |
Axis Drive System (X Y) | Black helical Rack and pinion +square guild |
Axis Drive System (Z) | TBI ball screw |
Moving type | Gantry moving |
Working table | T-slot worktable or vacuum worktable |
Control System | NC studio control system/DSP/SYNTEC |
Operational System Software | Type 3/Artcam/Castmate/Wentai/Auto CAD |
Resolution | <0.001mm |
Cutting Accuracy | ±0.02/300mm |
Repositioning Accuracy | ±0.01mm |
Max. Working speed | 0 - 18000 rpm/min |
Interface | USB |
Voltage | AC380V /50~60Hz |
Weight | 1200KG ±10% |
Packing | Standard wooden board |

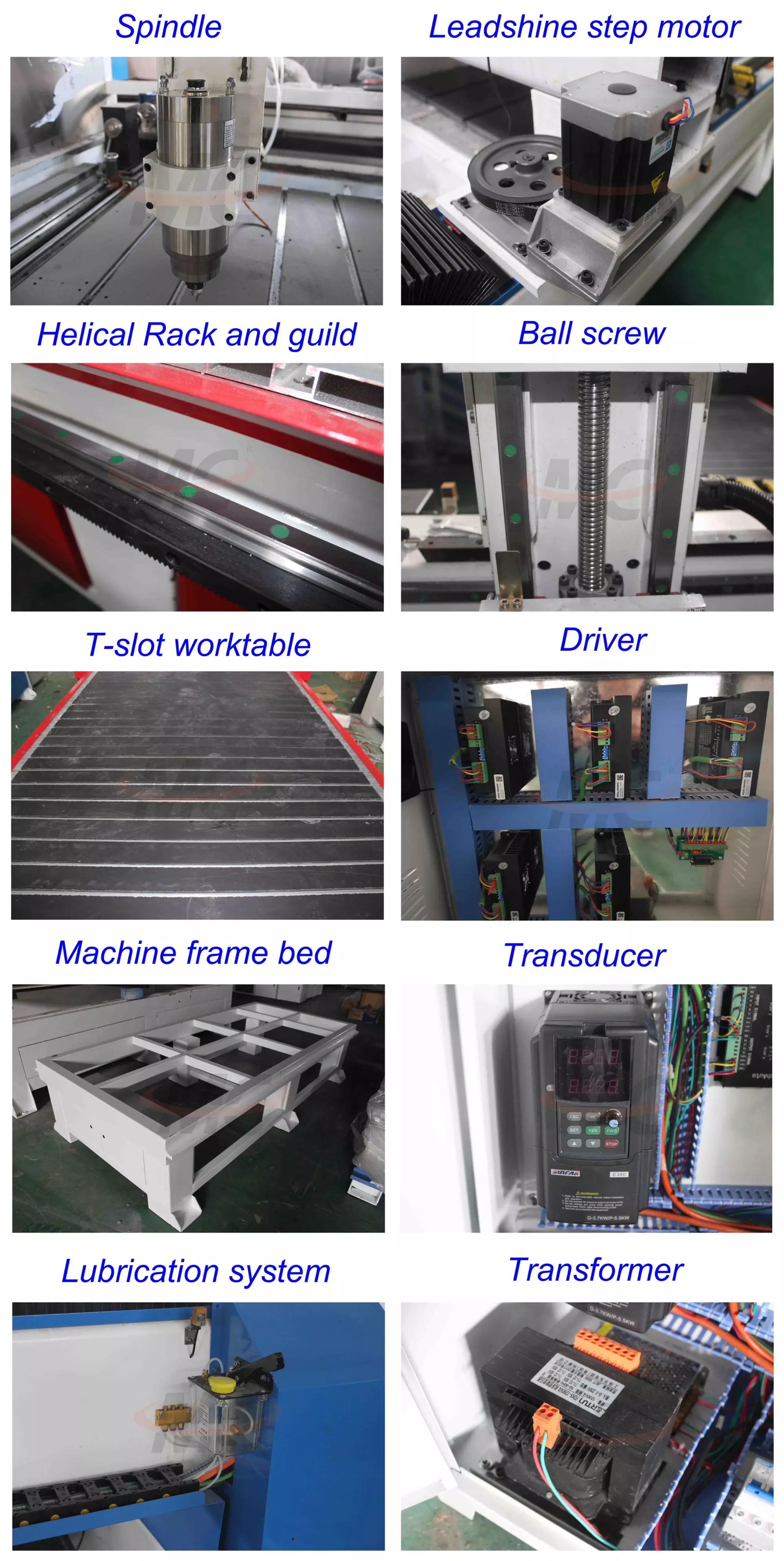

Details
Samples
