CO2 Mixed Cutter CNC Wood Acrylic Metal Laser Cutting Machine

Metal and nonmetal laser cutting machine with Economical and high cost performance, could meets your cutting requests for different materials.

Quantity:

Product Description

Smart control panel-RD brand,can display work process clearly.

Laser head with red-light pointer, to find the position of laser beam.

Lead Shine brand 3 phase Step motor, with powerful and high precision.

Taiwan imported Liner guide rail and high speed & wear-resisting belt.

Dustproof device & Chain,easy to maintain guide rails and wire.


Optional parts of 1300*2500mm working size 100w 130w 150w 180w 1325 laser cutting machine:


Auto focus device, can intelligent adjust the focus distance between the head and materials.

Motorized lifting table, intelligently adjust up and down in accordance with different thickness of material, make sure the best focus height and perfect processing effect.

Rotary device, used for round or cylindrical objects, such as: wine / glass bottle, mugs.

Wifi receiver, can operate directly by own phone, more convenient.


Specifications

Laser tube

130W RECI laser tube

Laser type

Sealed CO2 laser tube

Driving system

Leadshine 3 phase step motor

Transmission

High precision FULO belt system

Work platform

Blade platform or honeycomb

Controlling software

Off-computer controlling system

Compatible software

Coreldraw AutoCAD Photoshop

Cooling mode

Water cooling

Auxiliary equipment

Exhaust-fan, air pump,water pump.

Minimum shaping character

English 1*1mm

Cutting speed

0-4,0000mm/min due to different material

Engraving speed

0-64000mm/min

Position accuracy

±0.03mm

Operating temperature

0-45 degree

Working voltage

AC110-220V ±10%/10A,50-60HZ

Power

<1000W

Packing

Standard wooden board

Weight

1000KGS


Thickness of Laser Tube Cutting

Laser tube power

PMMA

Acrylic

Plywood

MDF sheet

Stainless

40w

5mm

3mm

0.5mm

0.5mm

------

60W

15mm

8mm

5mm

4mm

------

90W

15mm

12mm

8mm

7mm

------

100W

20mm

20mm

10mm

9mm

------

150W

30mm

30mm

18mm

12mm

1.5mm

180W

30mm

30mm

30mm

30mm

2mm

280W

30mm

30mm

30mm

30mm

3mm


Details

1325常规细节图

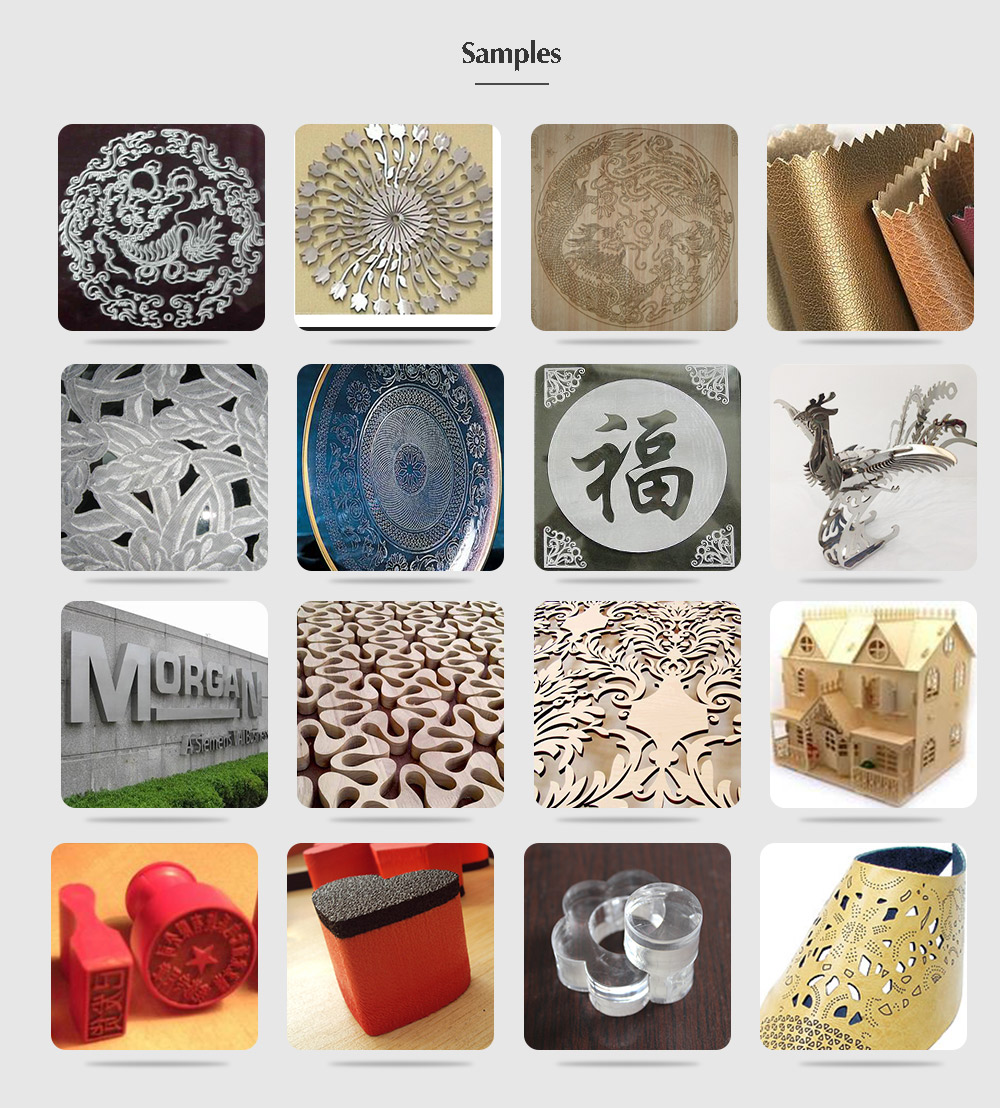

Samples

1313_03
