3 Axis ATC 3D Wood CNC Router Machine

Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

  • 1325
  • MC
Quantity:

Product Description


* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.


* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.


* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.


* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling



Specifications

Model

MC1325

Working size

1300*2500*300mm

Spindle

Italy HSD 9KW spindle

Machine`s structure

Heavy cast steel body and gantry

Drive Type

Delta servo motor

Axis Drive System (X Y)

Black helical Rack and pinion +square guild

Axis Drive System (Z)

TBI ball screw

Moving type

Gantry moving

Working table

T-slot worktable or vacuum worktable

Control System

NC studio control system/DSP/SYNTEC

Operational System Software

Type 3/Artcam/Castmate/Wentai/Auto CAD

Resolution

<0.001mm

Cutting Accuracy

±0.02/300mm

Repositioning Accuracy

±0.01mm

Max. Working speed

0 - 18000 rpm/min

Interface

USB

Voltage

AC380V /50~60Hz

Weight

1200KG ±10%

Packing

Standard wooden board


Details

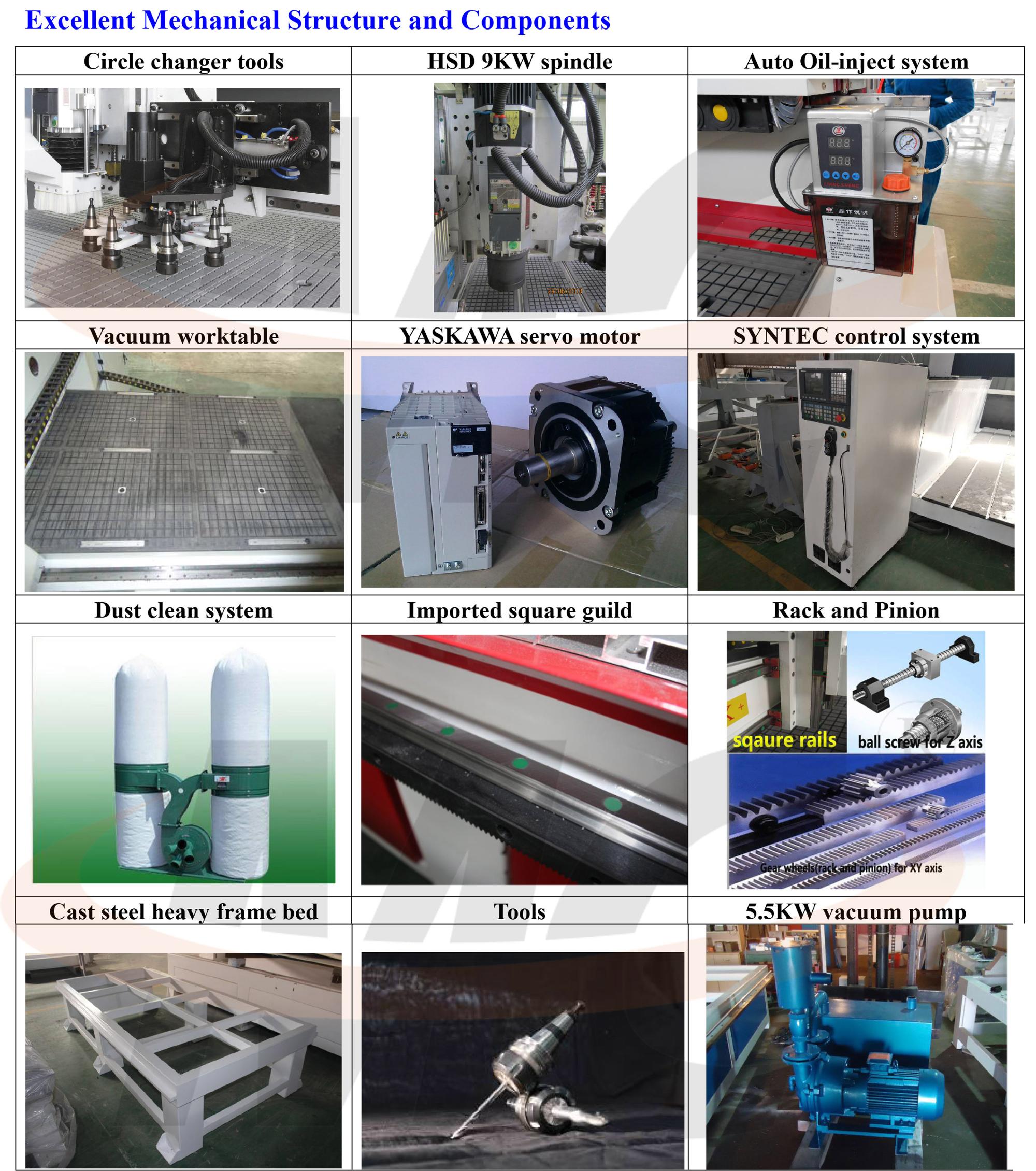

cnc router details

Samples

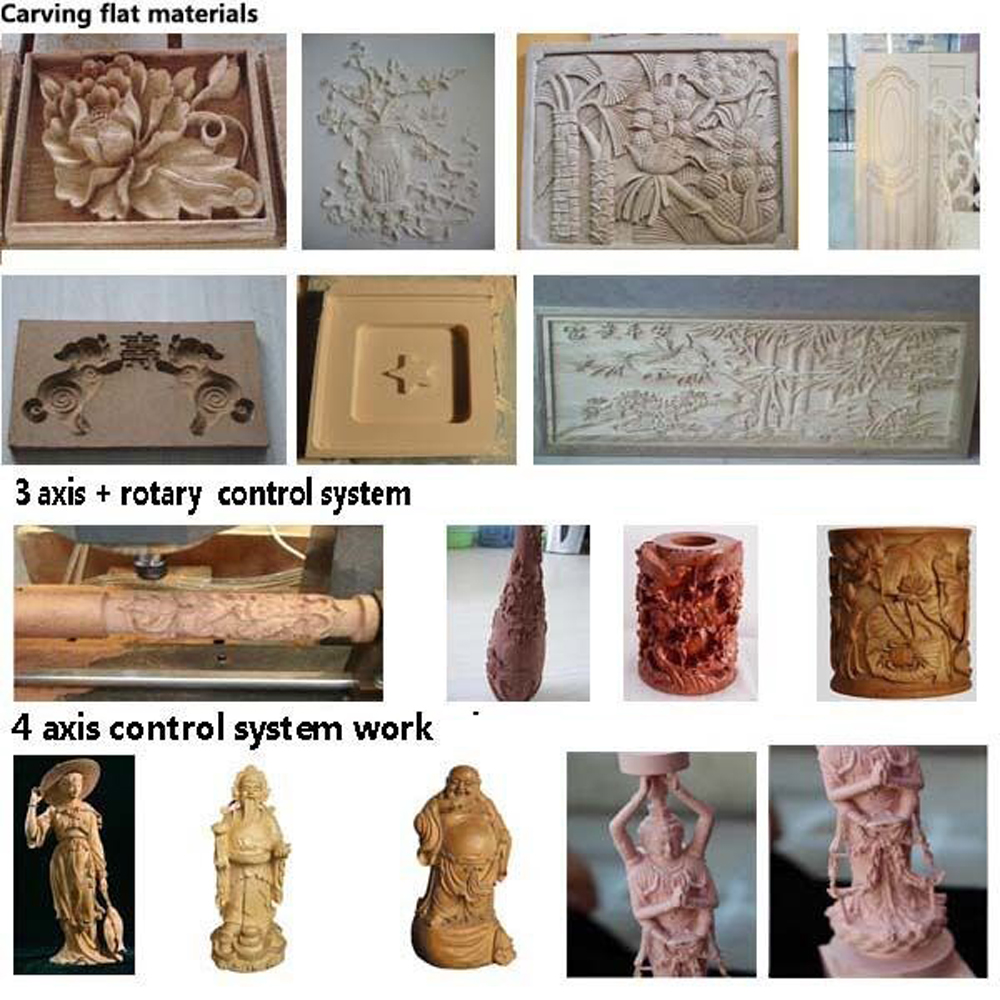

cnc router mahine samples
