MC1610 4 Heads Fabric Laser Cutting Machine for Sale

MC1610 4 heads fabric laser cutting machine You know , conveyor working table with auto-feeding device realizes continuous processing and automatic production, saving time and labor cost, specialized in cutting fabric, leather, paper, etc.

  • 1610
  • MC
power:
Working Size:
Quantity:

Product Description

1.Outstanding advantages of 1610 fabric laser cutting machine

1,High speed and auto-feeding to work on cloth,leather ,fabric, textile,etc

2,morden and smooth design, different colors according to your requests.(black & red, and blue & white) .

3,Stronger frame together with HIWIN square rail, high accuracy.---Transparent acrylic watching door, easy checking work process.---Independent laser tube cabinet, protect tube and easy change

4,Stainless steel comb working table, avoid rust.---Red cross point offers the

highest accuracy position.---High efficiency tube with stable laser path.

80W—180W life time reach to 8000—10000 hours.-- Professional motion

control card offers continue fast curve cutting together with shortest path selection.

 Shorten work time.---U disk offline operation makes work convenient.

5,Stable operation,High precision, Long lifetime, cutting with high precision, high speed

6,The control system is easy to learn, supporting dictate format of DWG, PLT, BMP,DXF,AL,transmitting files directly from CoreDraw ,AutoCAD etc.



1.odd number and even number cutting:Two heads can be engraved or cut off at the same

time. Or one of two heads work alone.  please attention that dual heads to do same things is

operated by control system

2.realize in auto feeding:when the first edition of fabric or leather is finished,the next

edition will be send into the machine automatically,don’t need set manually.

3.realize in automatically rectifying deviation:we have one automatically rectifying

deviation system(as below),could adjust the deviation of the fabric,let it keep staying

in the central of machine, so solved the defect of deviation in long time cutting work.

(this is our patent, in China,only our one company could produce this accessory)


Specifications

Model

MC1613

MC1610

Option

Working Area

1600*1300mm

1600*1000mm

According to Demands

Laser Power

 80w/100w/150w/180w

Laser Type

CO2 Sealed Laser Tube , 10.6μm

Cooling Type

Water Cooling

Engraving Speed

0-60000mm/min

Cutting Speed

0-36000mm/min

Laser Output Control

0-100% Set by Software

Min. Engraving Size

 English Letter:1.0mm*1.0mm

Highest Scanning Precision

2500DPI

Locating Accuracy

≤+0.01mm

Controlling Software

DSP Control System

Graphic Format Supported

DST PLT BMP DXF DWG AI LAS,etc

Compatible Software

CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.

Color Separation

Yes

Drive System

High-precision 3-phase Stepper Motor

Auxiliary Equipments

Exhaust Fan and Air Exhaust Pipe

Power Supply

AC110V/220V±10%,50HZ/60HZ

Working Environment

Temperature:0-45C,Humidity 5-95%(No Condensate Water)

Option

Water chiller Red Dot Position System

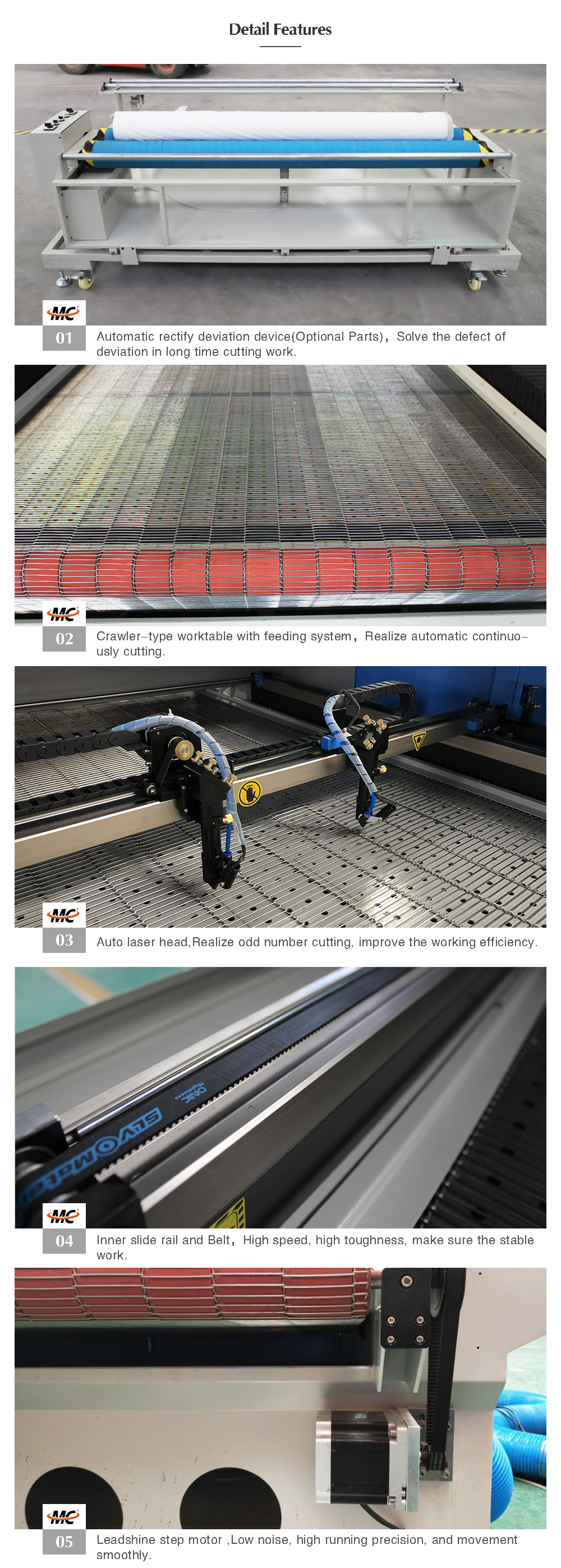

Details

1610新_04

Samples

1610 laser cutting machine
