9060 1212 3 Axis Woodworking Cnc Router Machine for Wood

1. Carve the surface quickly for metals such as copper and aluminum!
2. Quickly engrave all kinds of jade cards, pendants, ornaments, etc.!

  • 1212
  • MC
  • MC 1212
Quantity:

Product Description

Applicable industry:

1. Carve the surface quickly for metals such as copper and aluminum!


2. Quickly engrave all kinds of jade cards, pendants, ornaments, etc.!


3. Three-dimensional carvings for high-end handicrafts such as pipes, olive cores, and wooden crafts! Flat engraving.


4. Carry out rapid engraving for plates, such as flat engraving of PVC board, double color board, wood board, etc.

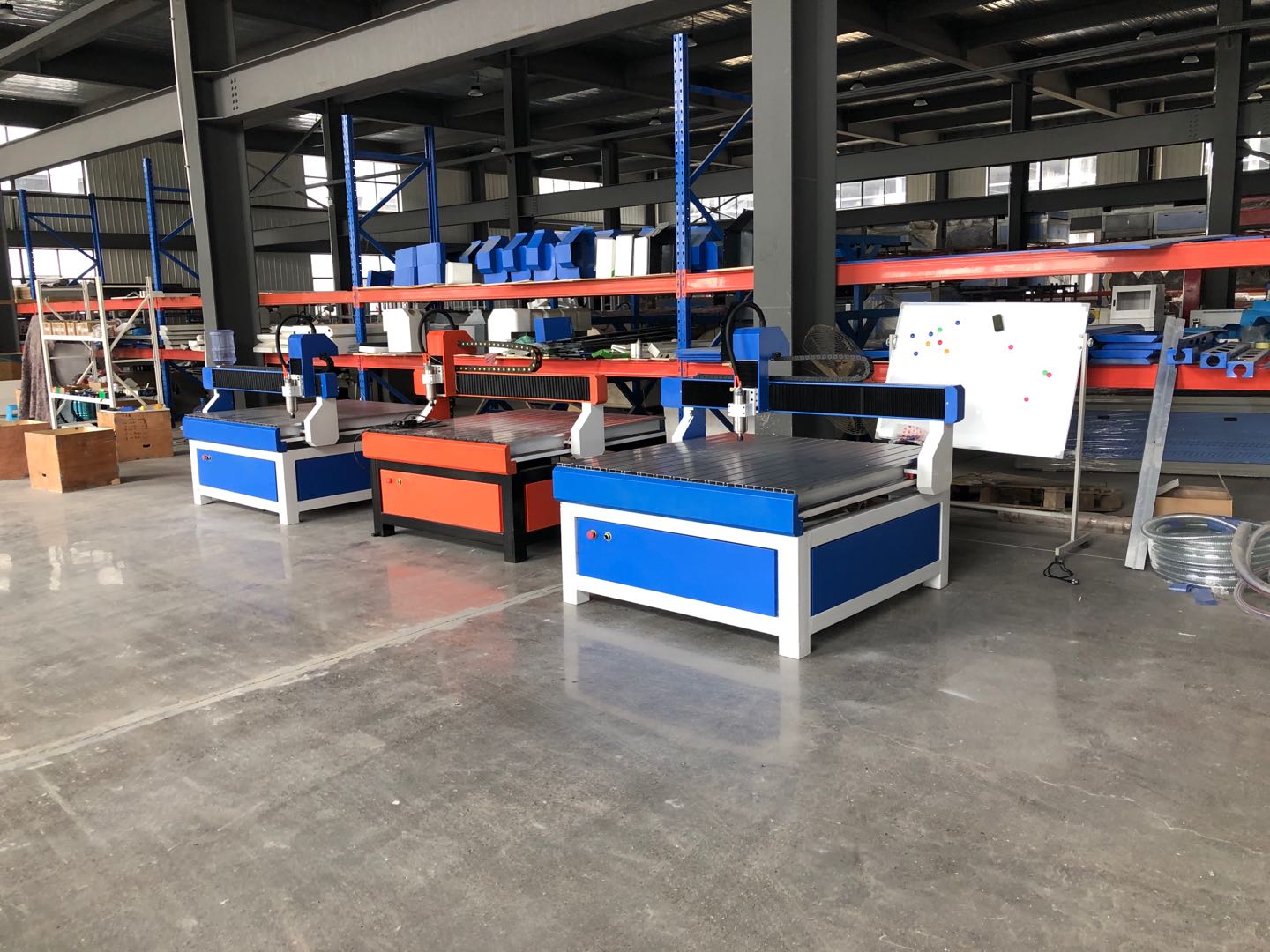

cnc router 1212 details

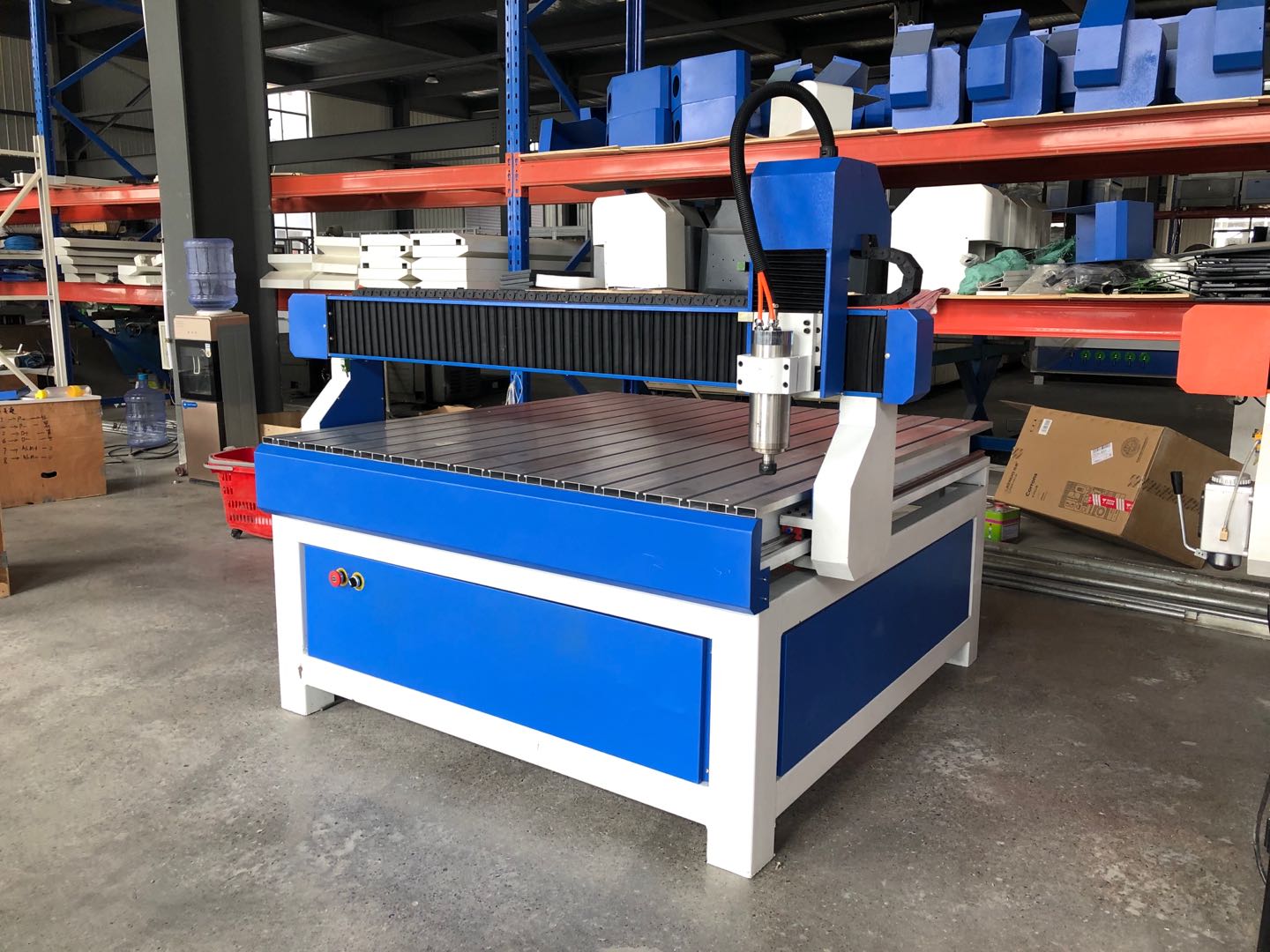

CNC ROUTER MACHINE

Features:


◆ The platform moves and the support surface of the guide rail is stable.


◆ The three-axis adopts full dustproof structure, and the screw guide rail adopts an automatic oil injection system to ensure that the screw guide rail can work for a long time


 Does not rust.


◆ The spindle is equipped with a high-torque spindle motor, which has fast rotation speed, small rotation vibration and low working noise.


◆ The X, Y, and Z axes of the equipment all use square linear guides, which have large load redundancy and long life. For high-speed CNC equipment, square linear guides have longer life and higher accuracy than round rails.


◆ The equipment operation is simpler and the design is more user-friendly, making you more handy in the process of using.


Production standards:


◆ Manufactured in strict accordance with European CE standards;





Specification

Model

MC1325/9060/1212

Spindle

3.5KW water cooling spindle

Machine`s structure

Cast steel body and gantry

Drive Type

Leadshine 450B big step motor

Axis Drive System (X Y)

Taiwan HIWIN black helical Rack and pinion

Axis Drive System (Z)

TBI ball screw

Moving type

Gantry moving

Working table

PVC and Aluminum worktable.

Control System

March 3 control system

Operational System Software

Type 3/Artcam/Castmate/Wentai/Auto CAD

Resolution

<0.001mm

Cutting Accuracy

±0.02/300mm

Repositioning Accuracy

±0.01mm

Max. Working speed

0 - 24000 rpm/min

Interface

USB

Voltage

AC220V or 380V /50~60Hz

Weight

1000KG ±10%

Packing

Standard wooden board


Details

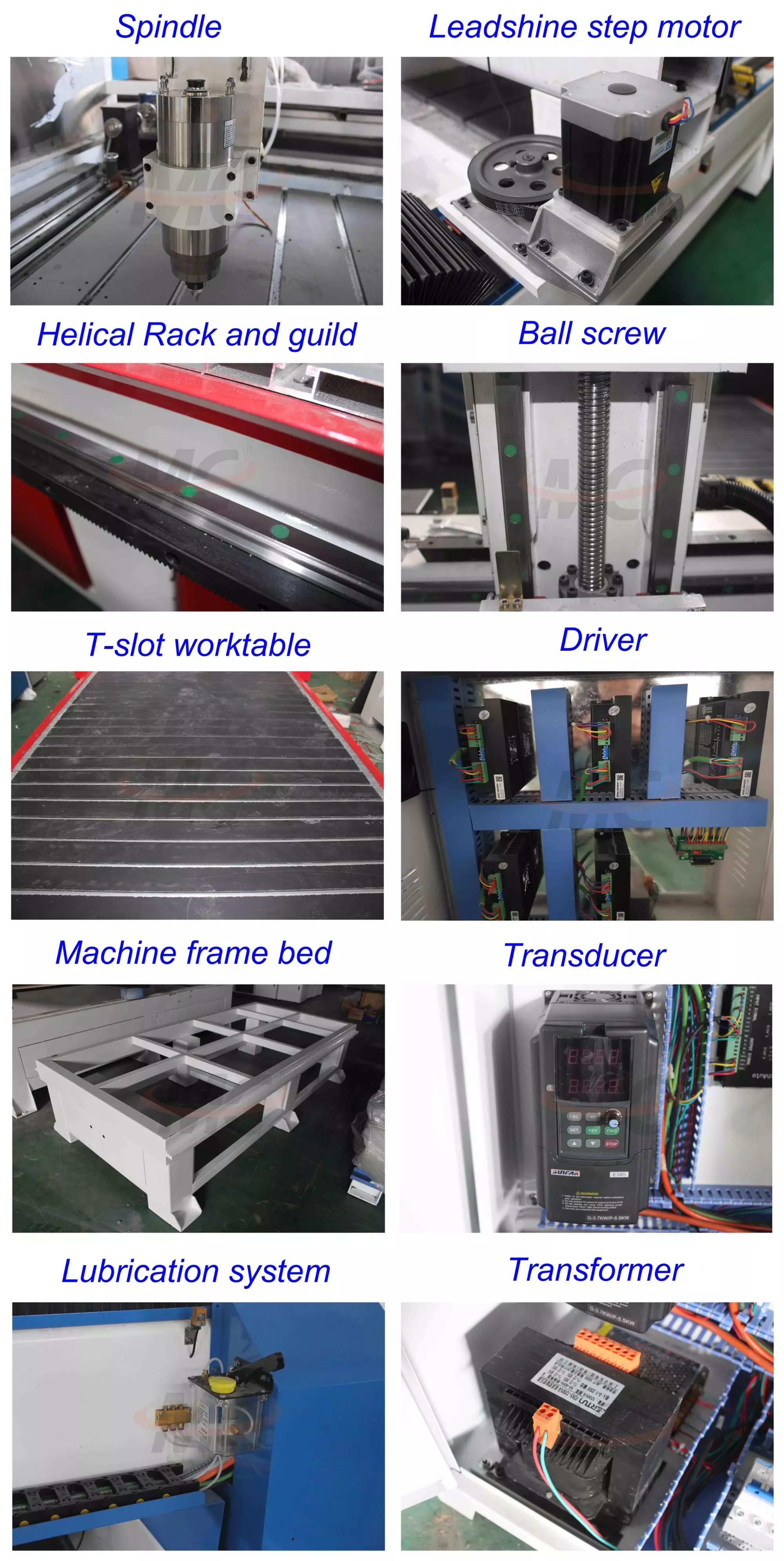

cnc 1325 details
