9060 Co2 Laser Cutting and Laser Engraving Machine

1. Stone Industry: marble, granite, white marble etc.
2. Artcrafts Industry: wood, bamboo, leather, marble, sea shell etc.
3. Advertisement Industry: double color board, acrylic engraving and cutting, label engraving, etc.

Model:
9060
Brand:
MC
Code:
MC 9060

Availability:

Quantity:



Inquire Add to Basket

Product Description

1. Stone Industry: marble, granite, white marble etc.

2. Artcrafts Industry: wood, bamboo, leather, marble, sea shell etc.

3. Advertisement Industry: double color board, acrylic engraving and cutting, label engraving, etc.

4. Model Industry: sand table constructtion model, plane model etc.

5. Packing Industry: rubber engraving, plastic, die board cutting etc.

6. leather and cloth processing Industry: compound leather, man-made leather,fabric, fur, toy etc.

7. other industry: glass, crystal engraving, paper/greeting card cutting etc.

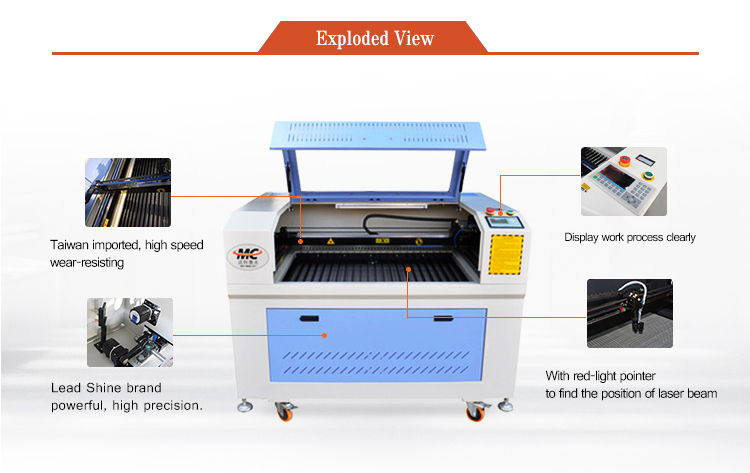

9060 blue

Specifications

Working size	900mm*600mm
Laser tube	80W/90W/100W RECI laser tube
Laser type	Sealed CO2 laser tube

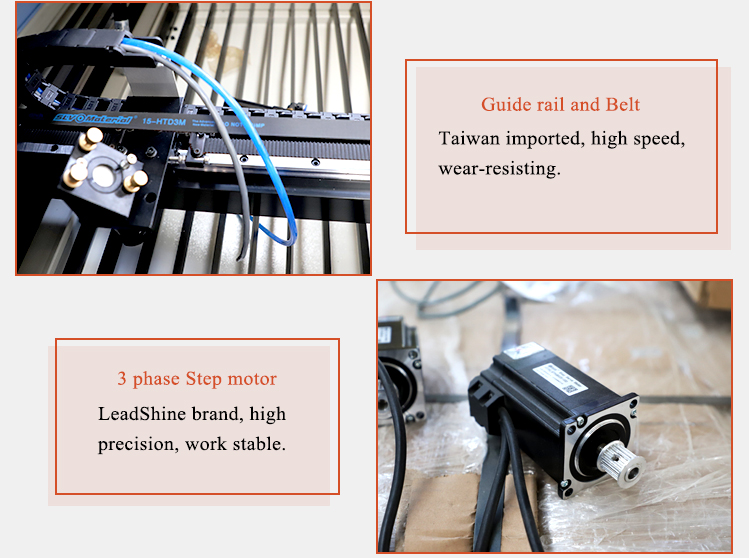

Driving system	JMK 3 phase step motor
Transmission	High precision FULO belt system
Work platform	Blade platform or honeycomb
Controlling software	Off-computer controlling system
Compatible software	Coreldraw AutoCAD Photoshop
Cooling mode	Water cooling
Auxiliary equipment	Exhaust-fan, air pump,water pump.
Minimum shaping character	English 1*1mm
Cutting speed	0-40000mm/min due to different material
Engraving speed	0-64000mm/min
Position accuracy	±0.03mm
Operating temperature	0-45 degree
Working voltage	AC110-220V ±10%/10A,50-60HZ
Power	2500W
Packing	Standard wooden board
Weight	370KGS
