Home » News » Company News » In November, Brazil's custom 1390 laser cutting machine test and packaging

In November, Brazil's custom 1390 laser cutting machine test and packaging

Views:3     Author:Site Editor     Publish Time: 2019-11-14      Origin:Site


1. Stone Industry: marble, granite, white marble etc.

2. Artcrafts Industry: wood, bamboo, leather, marble, sea shell etc.

3. Advertisement  Industry: double color board, acrylic engraving and cutting, label engraving, etc.

4. Model Industry: sand table constructtion model, plane model etc.

5. Packing Industry: rubber engraving, plastic, die board cutting etc.

6. leather and cloth processing Industry: compound leather, man-made leather,fabric, fur, toy etc.

7. other industry: glass, crystal engraving, paper/greeting card cutting etc.

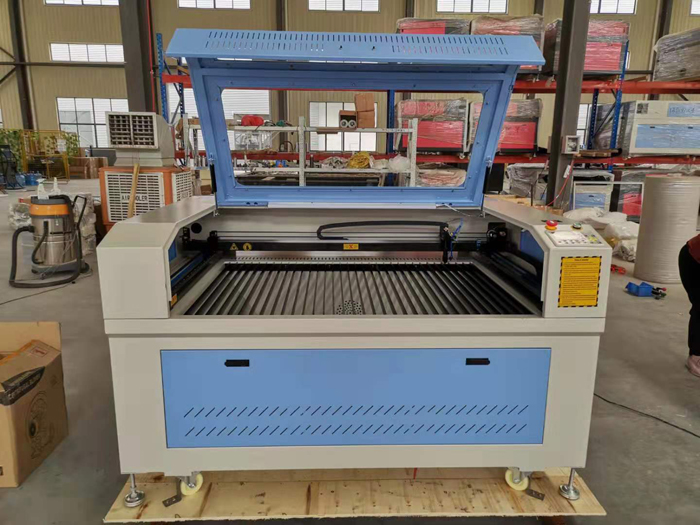

1390 laser cutting machine

Working size

1300mm*900mm

Laser tube

90W/100W/150W RECI laser tube

Laser type

Sealed CO2 laser tube

Driving system

JMK 3 phase step motor

Transmission

High precision FULO belt system

Work platform

Blade platform or honeycomb

Controlling software

Off-computer controlling system

Compatible software

Coreldraw AutoCAD Photoshop

Cooling mode

Water cooling

Auxiliary equipment

Exhaust-fan, air pump,water pump.

Minimum shaping character

English 1*1mm

Cutting speed

0-40000mm/min due to different material

Engraving speed

0-64000mm/min

Position accuracy

±0.03mm

Operating temperature

0-45 degree

Working voltage

AC110-220V ±10%/10A,50-60HZ

Power

2500W

Packing

Standard wooden board

Weight

450KGS

Thickness of Laser Tube Cutting

Laser tube power

PMMA

Acrylic

Plywood

MDF sheet

Stainless

40w

5mm

3mm

0.5mm

0.5mm

------

60W

15mm

8mm

5mm

4mm

------

90W

15mm

10mm

8mm

7mm

------

100W

20mm

20mm

10mm

9mm

------

150W

30mm

30mm

18mm

12mm

1.5mm
