MC 9060 100w Acrylic Co2 Laser Cutting Machine with Up-down Platform

MC 9060 100w Acrylic Co2 Laser Cutting Machine with Up-down Platform, find complete details about MC 9060 100w Acrylic Co2 Laser Cutting Machine with Up-down Platform, Co2 Laser Cutting Machine, Acrylic Co2 Laser Cutting Machine, 9060 100w Co2 Laser Cutting Machine - Shandong Maichuang Smart Equipment Group Co., LTD.
  • 9060
  • MC
power:
Quantity:

Product Description

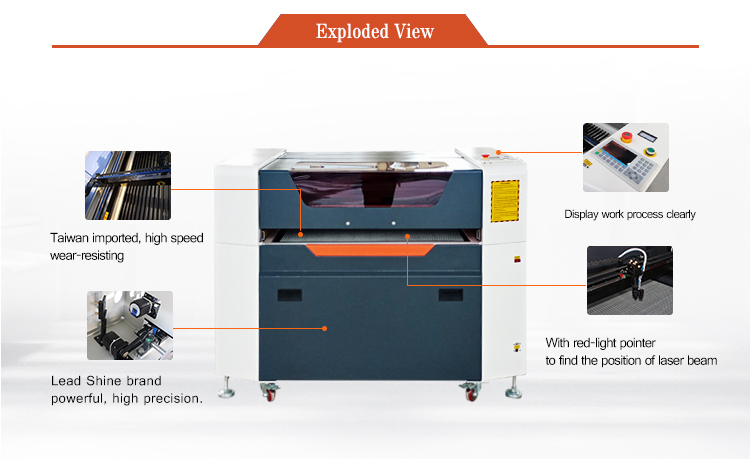

9060 laser cutting machine

Specifications

ModelMC 9060
Working size900mm*600mm
Laser tube60w/80w/100w/130w/150w
Laser typeCO2 laser tube
Driving system3 phase Step motor and Driver
TransmissionBelt and Taiwan guide rail

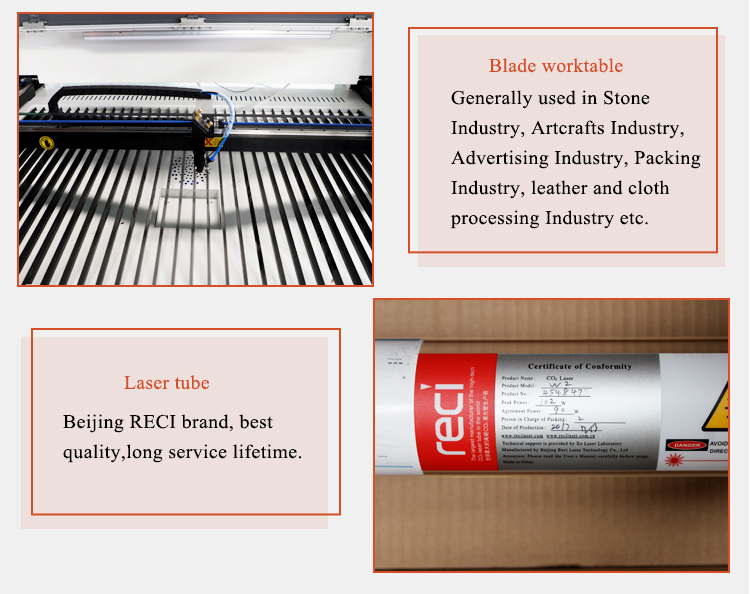

Work platformBlade or Honeycomb
Controlling softwareOff-computer / USB
Compatible softwareCoreldraw AutoCAD Photoshop
Cooling modeWater cooling
Auxiliary equipmentWater pump/Chiller, Exhaust-fan with air pipe, Air pump
Optional partsRotary device, Up-down table, Auto focus, Red-light Pointer
Minimum shaping characterEnglish 1*1mm, Chinese 2*2mm
Cutting speed0-40000mm/min due to different material
Engraving speed0-60000mm/min due to different material
Operating temperature0-45 degree
Working voltage

220V, 50-60HZ(110V is available)

Thickness of Laser Tube Cutting

Laser tube power

PMMA

Acrylic

Plywood

MDF sheet

Stainless

40w

5mm

3mm

0.5mm

0.5mm

------

60W

15mm

8mm

5mm

4mm

------

90W

15mm

10mm

8mm

7mm

------

100W

20mm

20mm

10mm

9mm

------

150W

30mm

30mm

18mm

12mm

1.5mm


Details

detail 01

details002

details03

other parts


Samples

materials

sample
