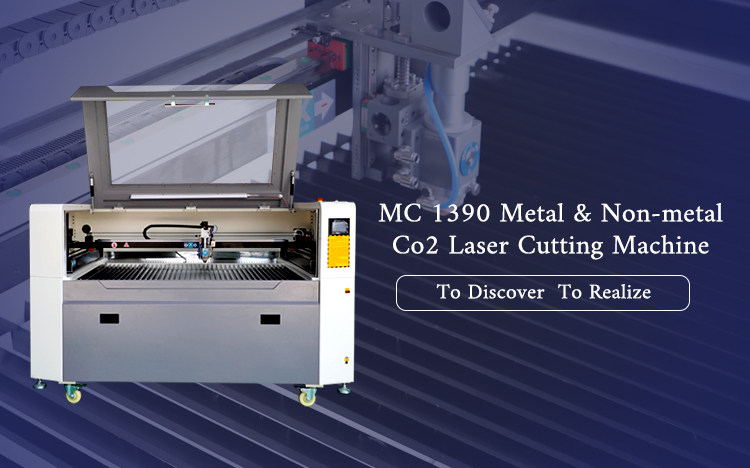

MC 1390 Mixed Laser Cutting Machine

Mixed Laser Cutting Machine can cut metal materials, such as stainless steel, carbon steel, galvanized sheet, and non-metallic materials: such as acrylic, density board, wooden board, plastic, leather etc.

  • 1390
  • MC
Working Size:
Quantity:

Product Description


1390 mixed

Mixed Laser Cutting Machine can cut metal materials, such as stainless steel, carbon steel, galvanized sheet, and non-metallic materials: such as acrylic, density board, wooden board, plastic, leather etc.


Specification

Working size

1300mm*900mm

Laser tube

150W RECI laser tube

Laser type

Sealed CO2 laser tube

Driving system

JMK 3 phase step motor

Transmission

High precision FULO belt system

Work platform

Blade platform or honeycomb

Controlling software

Off-computer controlling system

Compatible software

Coreldraw AutoCAD Photoshop

Cooling mode

Water cooling

Auxiliary equipment

Exhaust-fan, air pump,Chiller.

Minimum shaping character

English 1*1mm

Cutting speed

0-400mm/min due to different material

Engraving speed

0-600mm/min

Position accuracy

±0.01mm

Operating temperature

0-45 degree

Working voltage

AC110-220V ±10%/10A,50-60HZ

Power

<2500W

Packing

Standard   wooden board



Details

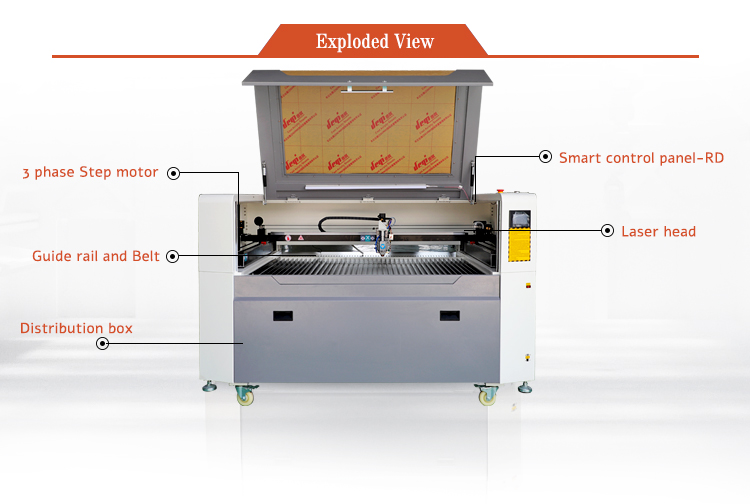

1390 mixed

1390mixed laser cutting machine

1390 mixed -3

1390 mixed -4

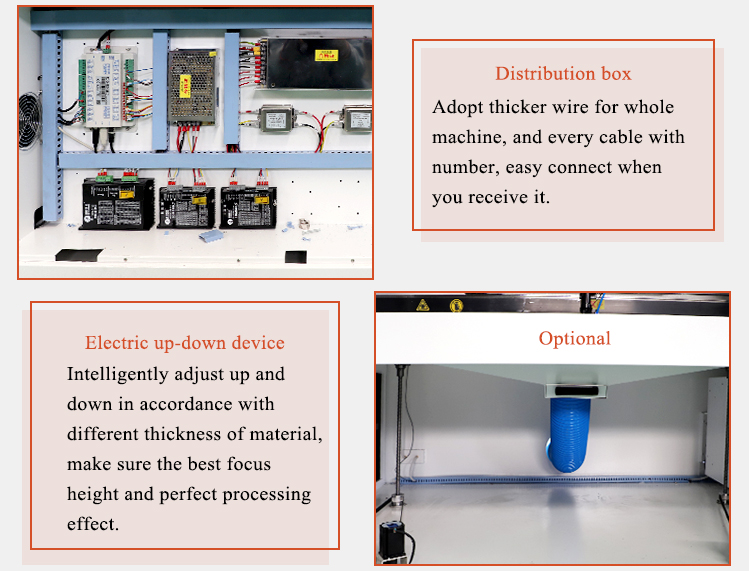

1390 mixed -5



Samples

1390 mixed -6
