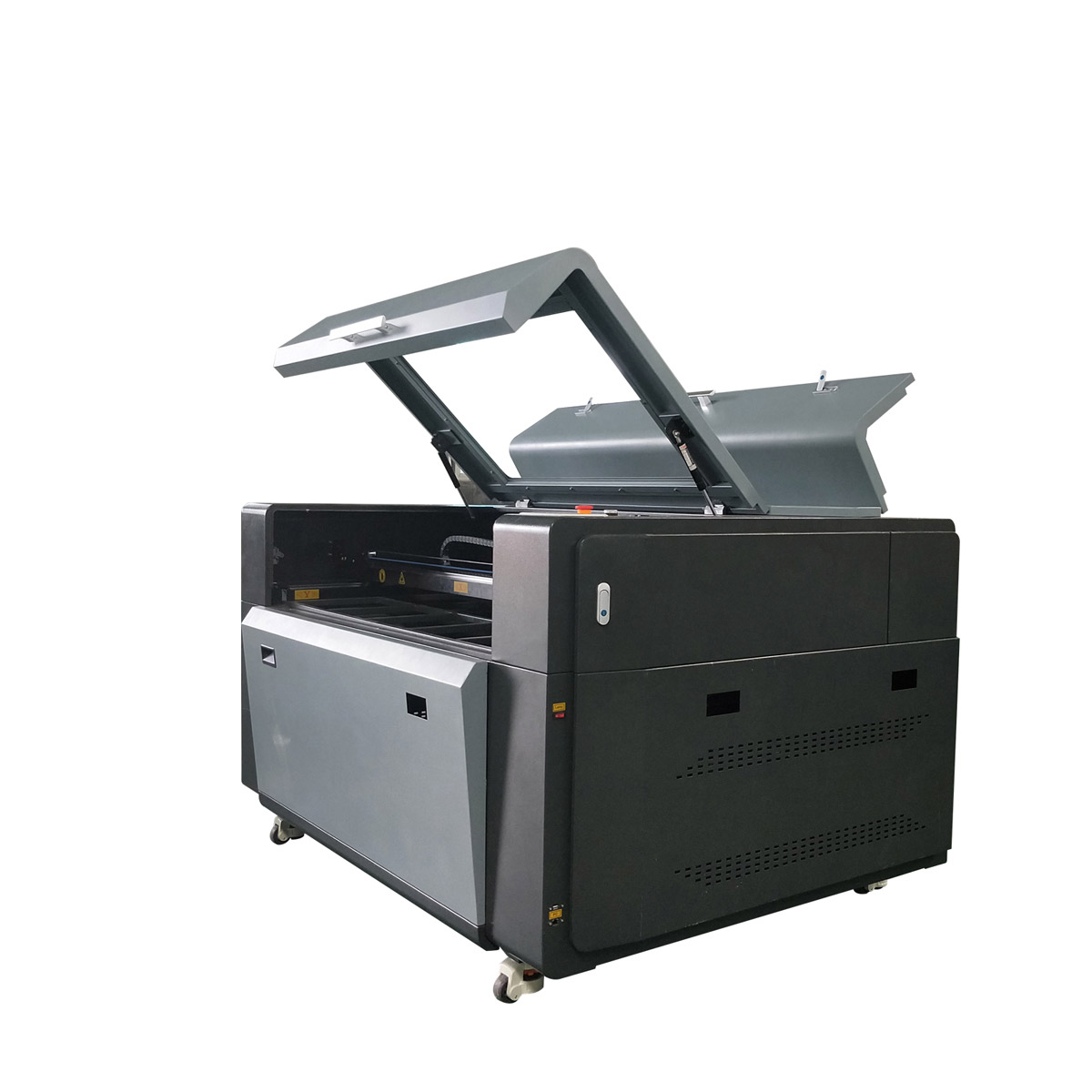

Multi-Function 1390 Laser Cutting Machine for Non-metal

MC 1390 Working size 1300mm*900mm
Laser tube 60w/80w/100w/130w/150w/280w/300w
Laser type CO2 laser tube
Driving system 3 phase Step motor and Driver Transmission Belt and Taiwan guide rail Work platform Blade or Honeycomb

  • 1390
  • MC
power:
Quantity:

Product Description

MC 1390 Working size 1300mm*900mm

Laser tube 60w/80w/100w/130w/150w/280w/300w

Laser type CO2 laser tube

Driving system 3 phase Step motor and Driver Transmission Belt and Taiwan guide rail Work platform Blade or Honeycomb


Controlling software :Off-computer / USB

Compatible software Coreldraw AutoCAD Photoshop

Cooling mode: Water cooling

Auxiliary equipment Water pump/Chiller, Exhaust-fan with air pipe, Air pump Optional parts Rotary device, Up-down table, ...

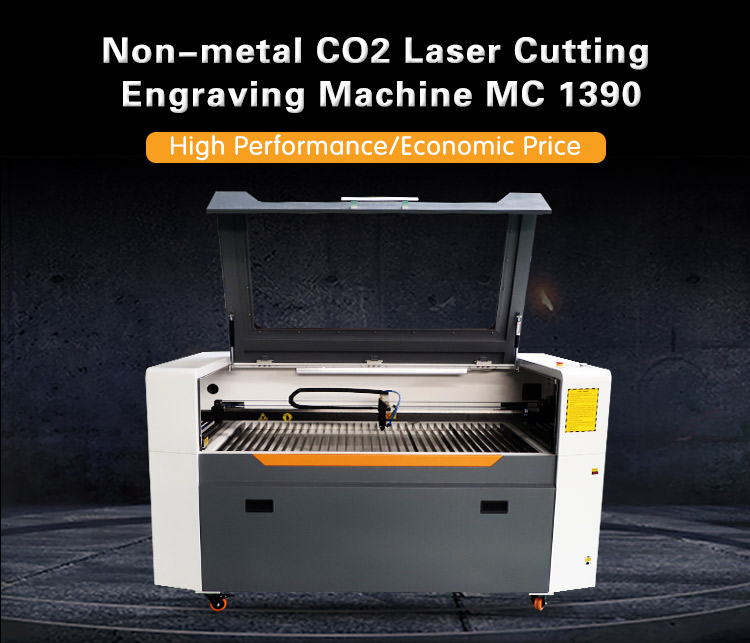

1390 Laser cutting machine

Specifications

ModelMC 1390
Working size1300mm*900mm

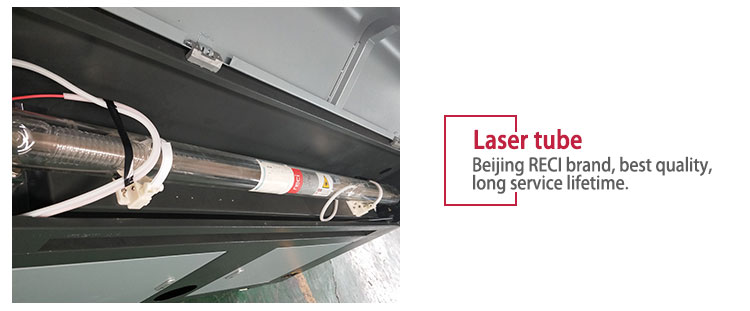

Laser tube60w/80w/100w/130w/150w/280w/300w
Laser typeCO2 laser tube
Driving system3 phase Step motor and Driver

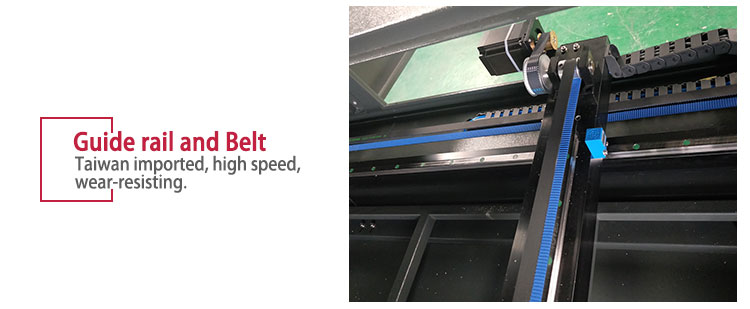

TransmissionBelt and Taiwan guide rail
Work platformBlade or Honeycomb

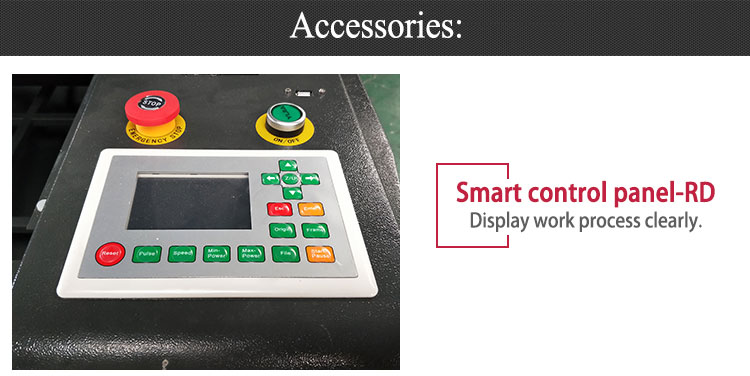

Controlling softwareOff-computer / USB
Compatible softwareCoreldraw AutoCAD Photoshop
Cooling modeWater cooling
Auxiliary equipmentWater pump/Chiller, Exhaust-fan with air pipe, Air pump

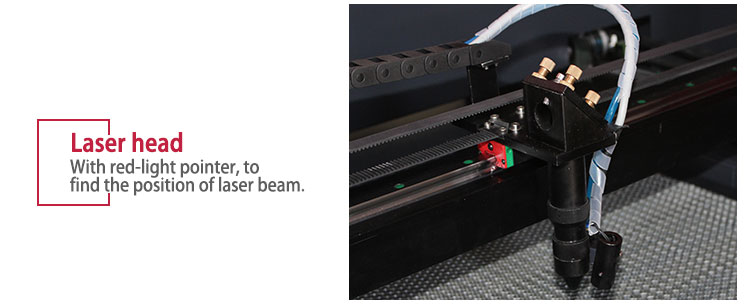

Optional partsRotary device, Up-down table, Auto focus, Red-light Pointer
Minimum shaping characterEnglish 1*1mm, Chinese 2*2mm
Cutting speed0-40000mm/min due to different material
Engraving speed0-60000mm/min due to different material
Operating temperature0-45 degree
Working voltage

220V, 50-60HZ(110V is available)

Thickness of Laser Tube Cutting

Laser tube power

PMMA

Acrylic

Plywood

MDF sheet

Stainless

40w

5mm

3mm

0.5mm

0.5mm

------

60W

15mm

8mm

5mm

4mm

------

90W

15mm

10mm

8mm

7mm

------

100W

20mm

20mm

10mm

9mm

------

150W

30mm

30mm

18mm

12mm

1.5mm


Details

1

2

3

4

5

6

Samples

samples
