MC1390 150W 180W Double Heads Laser Cutting Engraving Machine

MC 9060 100w Acrylic Co2 Laser Cutting Machine with Up-down Platform, find complete details about MC 9060 100w Acrylic Co2 Laser Cutting Machine with Up-down Platform, Co2 Laser Cutting Machine, Acrylic Co2 Laser Cutting Machine, 9060 100w Co2 Laser Cutting Machine - Shandong Maichuang Smart Equipment Group Co., LTD.

Model:
9060
Brand:
MC

power:	100W 150W
Availability:

Quantity:



Inquire Add to Basket

Product Description

exploded

Specifications

Model	MC 9060/1390
Working size	900mm600mm/1300900mm
Laser tube	60w/80w/100w/130w/150w
Laser type	CO2 laser tube
Driving system	3 phase Step motor and Driver
Transmission	Belt and Taiwan guide rail

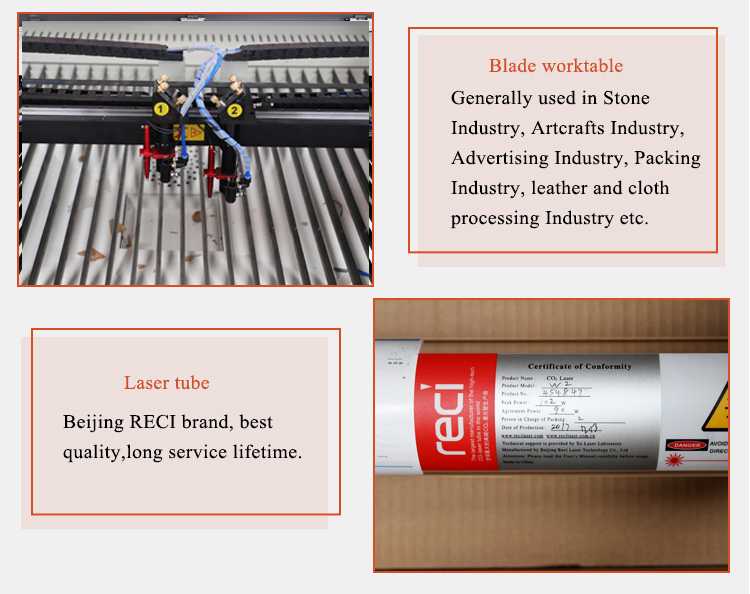

Work platform	Blade or Honeycomb
Controlling software	Off-computer / USB
Compatible software	Coreldraw AutoCAD Photoshop
Cooling mode	Water cooling
Auxiliary equipment	Water pump/Chiller, Exhaust-fan with air pipe, Air pump

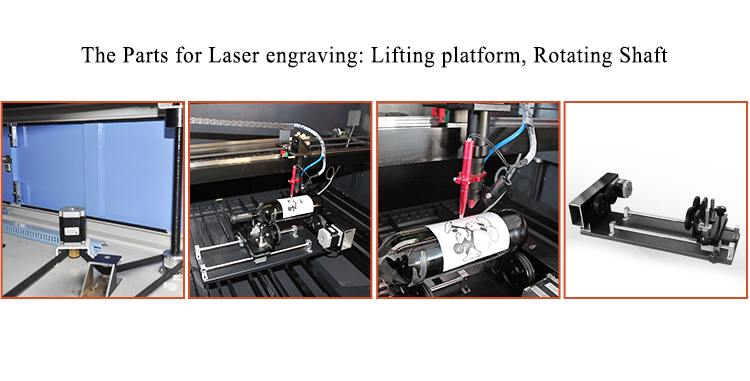

Optional parts	Rotary device, Up-down table, Auto focus, Red-light Pointer
Minimum shaping character	English 11mm, Chinese 22mm
Cutting speed	0-40000mm/min due to different material
Engraving speed	0-60000mm/min due to different material
Operating temperature	0-45 degree
Working voltage	220V, 50-60HZ(110V is available)

Thickness of Laser Tube Cutting

Laser tube power	PMMA	Acrylic	Plywood	MDF sheet	Stainless
40w	5mm	3mm	0.5mm	0.5mm	------
60W	15mm	8mm	5mm	4mm	------
90W	15mm	10mm	8mm	7mm	------
100W	20mm	20mm	10mm	9mm	------
150W	30mm	30mm	18mm	12mm	1.5mm
