MC 1630 CCD Camera Positioning Laser Cutting Machine for Fabric

CCD Camera Positioning Laser Cutting Machine take pictures for the print pictures or Embroider, let machine cut surround goods automatically

  • 1630
  • MC
Size:
Quantity:

Product Description

CCD Camera Positioning Laser Cutting Machine

Specification

Model

MC1630

Working size

1600mm*3000mm

Laser tube

150W RECI laser tube

Big CCD camera

1 complete

Laser type

Sealed CO2 laser tube

Driving system

Servo motor

Transmission

High precision FULO belt system

Work platform

Net worktable

Controlling software

Off-computer controlling system

Compatible software

Coreldraw AutoCAD Photoshop

Cooling mode

Water cooling

Auxiliary equipment

Exhaust-fan, air pump,CW5200Chiller.

Minimum shaping character

English 1*1mm

Cutting speed

0-400mm/s due to different material

Engraving speed

0-600mm/s

Position accuracy

±0.03mm

Operating temperature

0-45 degree

Working voltage

AC110-220V ±10%/10A,50-60HZ

Power

3500W

Packing

Standard wooden board

Weight

1200KGS


CCD Camera Cutting Machine Details

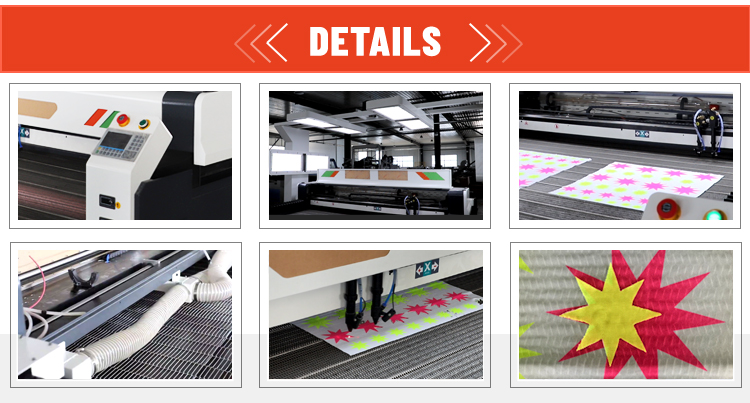

ccd use

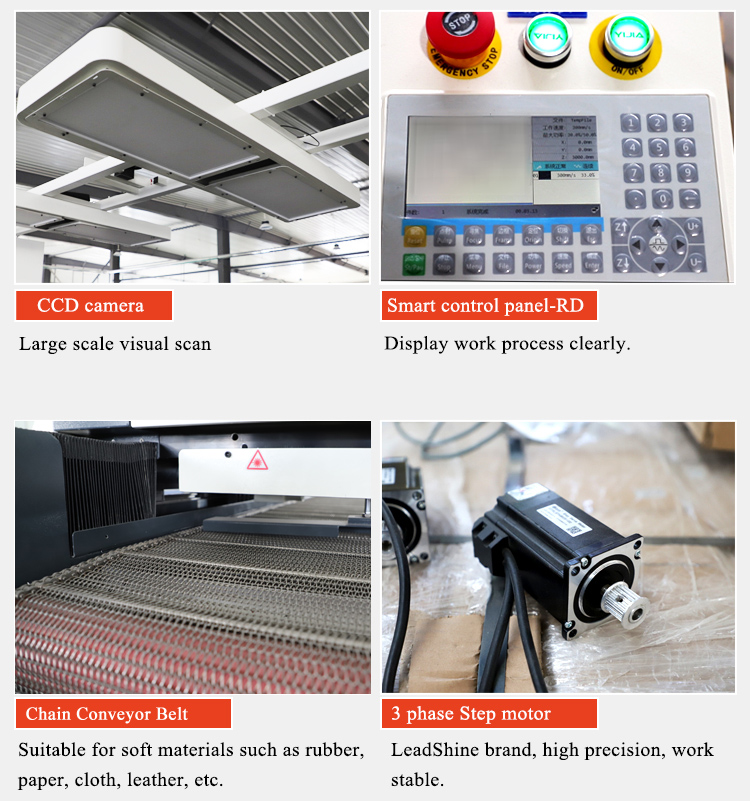

ccd details

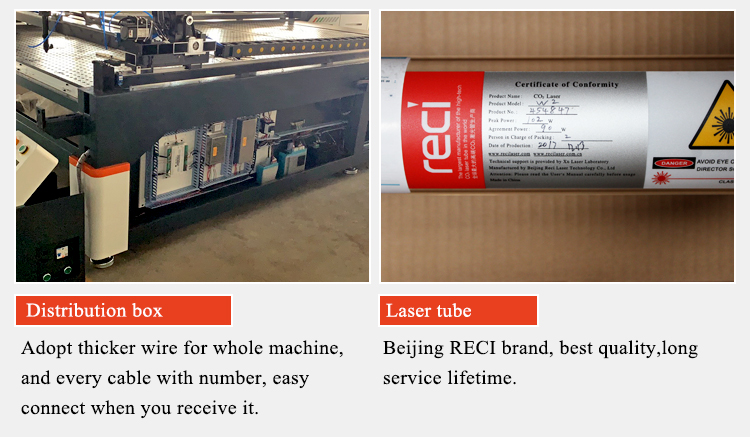

ccd cutting machine

Samples

ccd sample
