MC 1610 Cloth Laser Cutting Machine with Projector

working principle of laser cutting machine with projector
The material is spread on the machine worktable
The image is projected onto the work table by laser cutting machine with projector and cut by the laser head.

  • 1610
  • MC
Quantity:

Product Description

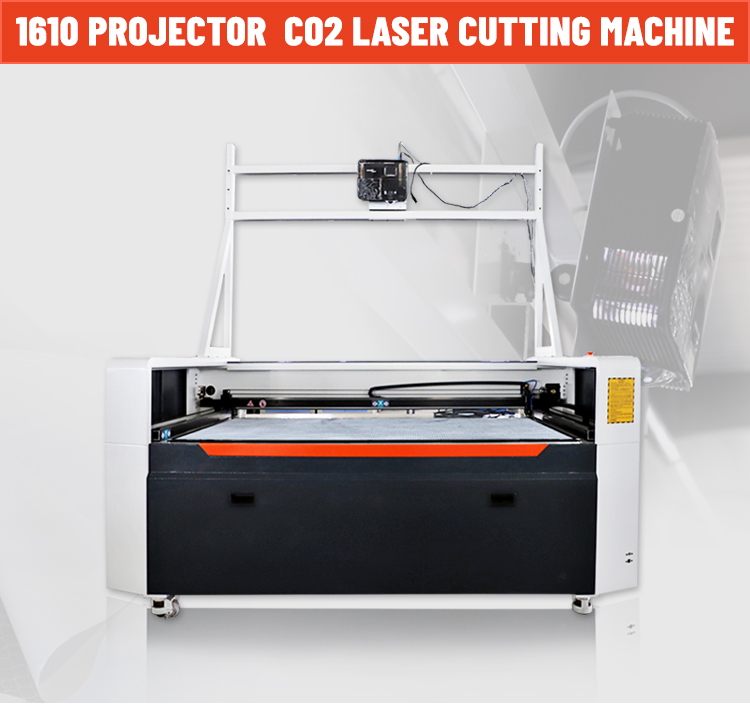

1610 projector laser cutting machine

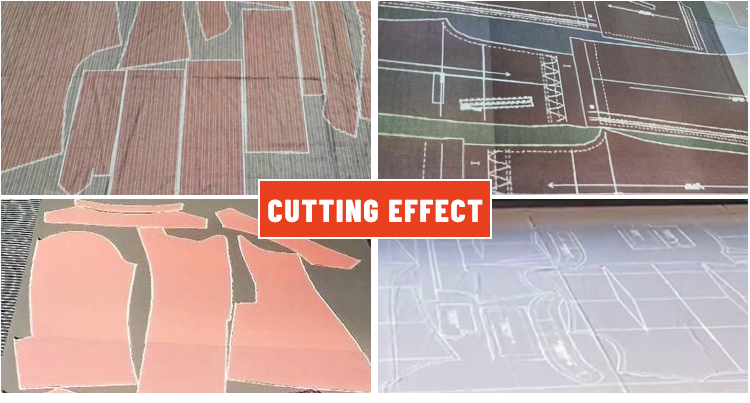

Samples

laser cutting machine with projector

The material is spread on the machine worktable

The image is projected onto the work table by laser cutting machine with projector and cut by the laser head.


projector laser cutting machine

Specifications

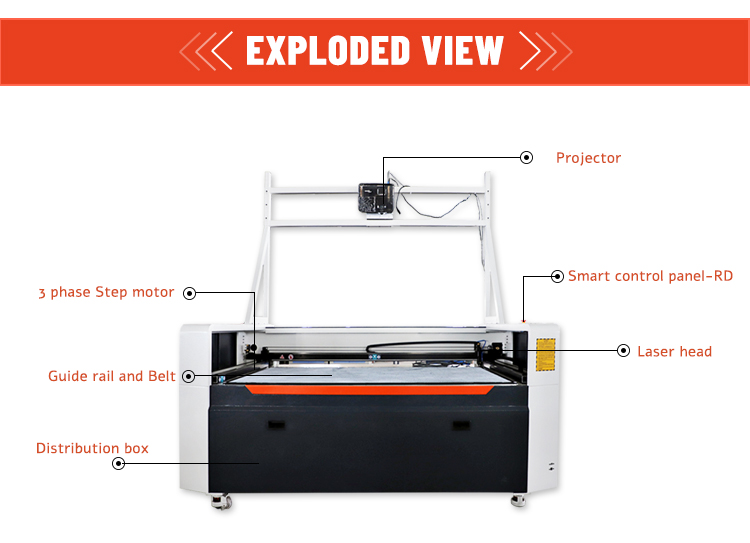

1610_04

Model

MC1610

Working size

1600mm*1000mm

Laser tube

150W RECI laser tube

Big CCD

1 set

Laser type

Sealed CO2 laser tube

Driving system

3 phase step motor

Transmission

High precision FULO belt system

Work platform

Net worktable

Controlling software

Off-computer controlling system

Compatible software

Coreldraw AutoCAD Photoshop

Cooling mode

Water cooling

Auxiliary equipment

Exhaust-fan, air pump,CW5200 Chiller

Minimum shaping character

English 1*1mm

Cutting speed

0-400mm/s due to different material

Engraving speed

0-600mm/s

Position accuracy

±0.03mm

Operating temperature

0-45 degree

Working voltage

AC110-220V ±10%/10A,50-60HZ


Details

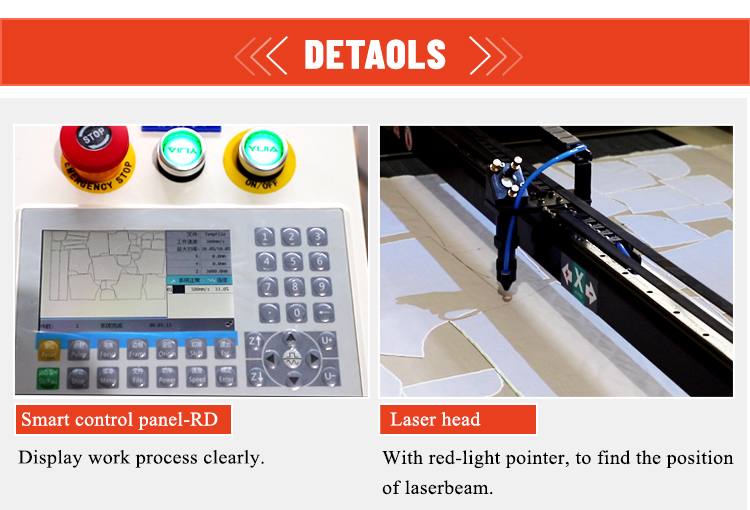

1610_06

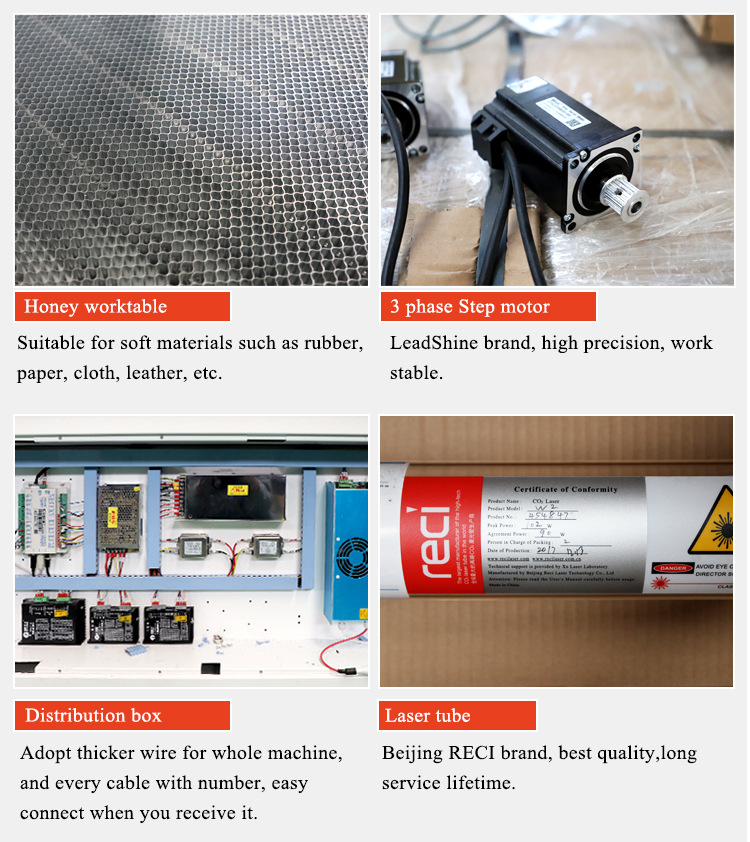

1610_07
